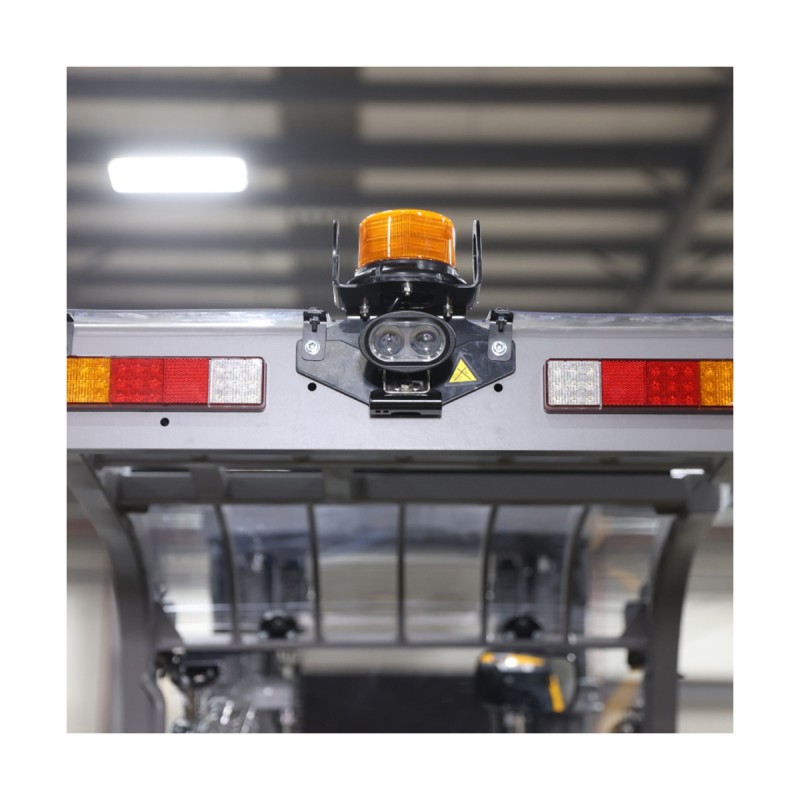

Combi lights, strobe light, blue Floor-Spot
Jungheinrich EFG BB 216k counterbalance truck: Roof window
Jungheinrich EFG BB 216k counterbalance truck: Steering rods
Jungheinrich EFG BB 216k counterbalance truck: Lead acid battery
Jungheinrich EFG BB 216k counterbalance truck: Example of use
Jungheinrich EFG BB 216k counterbalance truck: Example of use
Jungheinrich EFG BB 216k counterbalance truck
Jungheinrich EFG BB 216k counterbalance truck
Jungheinrich EFG BB 216k counterbalance truck
Jungheinrich EFG BB 216k counterbalance truck
Jungheinrich EFG BB 216k counterbalance truck:
Combi lights, strobe light, blue Floor-Spot
Jungheinrich EFG BB 216k counterbalance truck: Roof window
Jungheinrich EFG BB 216k counterbalance truck: Steering rods
Jungheinrich EFG BB 216k counterbalance truck: Lead acid battery
Jungheinrich EFG BB 216k counterbalance truck: Example of use
Jungheinrich EFG BB 216k counterbalance truck: Example of use
1600 kg
1600 kg

Description

Versatile and reliable EFG Electric forklift trucks | BB Series

Our solid and versatile EFG electric forklift trucks of the BB Series are ideally suited to a wide range of transport and stacking tasks. Thanks to the compact design, the maneuverable three-wheel counterbalance forklift truck is particularly convincing for flexible transport in confined warehouses.

Key Features

  • Compact design: The minimized turning radius of the truck enables operation in very confined spaces.
  • Energy efficient: Electric motors with proven AC technology, in combination with highly efficient Jungheinrich batteries, ensure high performance with low energy consumption at all times.
  • Low operating costs: Durable, high-quality components and rigorous quality testing ensure reduced wear and reliable truck operation at all times.
  • High residual capacity: Stable mast profile and low center of gravity for increased load capacity.
  • Safe operation: curveCONTROL for automatic speed reduction when cornering.

Watch how EFG BB 216k is being used by Pure Ingredients on our YouTube channel.

Capacity (Q)
1600 kg
Mast Type
Three-stage / Triplex mast with free lift (DZ)
Lift (h3)
4800 mm
Free lift (h2)
1460 mm
Retracted mast height (h1)
2105 mm
Extended mast height (h4)
5355 mm
Fork dimensions
40 x 100 x 1150 mm
Turning radius (Wa)
1545 mm
Sideshift
Integrated
Lights
2x combi lights, rear
2x working light LED, front
Blue Floor-Spot
Strobe light
Working light, rear
Additional equipment
Acoustic warning buzzer when reversing
Load guard
Panoramic rear-view mirror
Roof window, plastic
Drive motor, performance S2 60 min
3,7 kW
Travel speed, laden/unladen
15 / 15 km/h
Lift motor, performance with S3
10 kW
Lift speed with/without load
0,43 / 0,53 m/s
Lowering speed with/without load
0,51 / 0,55 m/s
Max. gradeability laden/unladen
13,5 / 16 %
Battery type
Lead acid battery
Battery voltage
48 V
Battery capacity
625 Ah
Charger
D 400 G48/95
Wheels, number front/back (x-driven)
2x / 2
Tyres
Super-elastic (SE), non-marking
Energy consumption according to EN cycle
4,25 kWh/h
CO2 equivalent as per EN 16796
2,3 kg/h

Jungheinrich EFG BB 216k DZ 480

Electric three-wheel counterbalance forklift truck with load capacity of 1.6t

  • Triplex DZ mast 4800 mm
  • Strong and concise design
  • Energy-efficient operation
  • Comfortable and safe operation
  • IN STOCK!

€24,800.00
€22,320.00 You Save 10%
Tax excluded
Jungheinrich-EFG-BB-216k-DZ-480-F5016616
Status: In stock (JH-SI local warehouse)

Delivery: In 2-5 days
