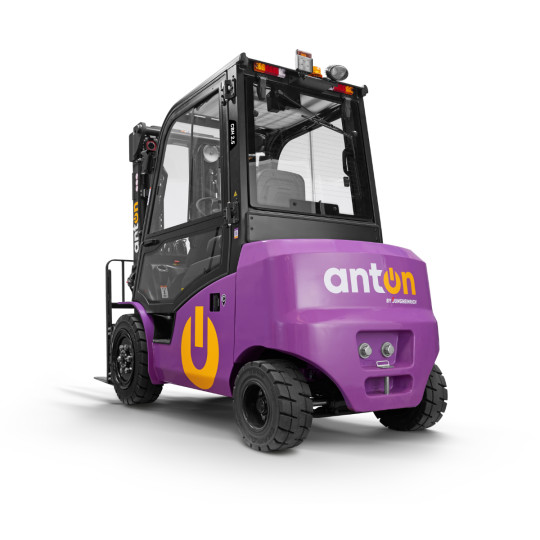

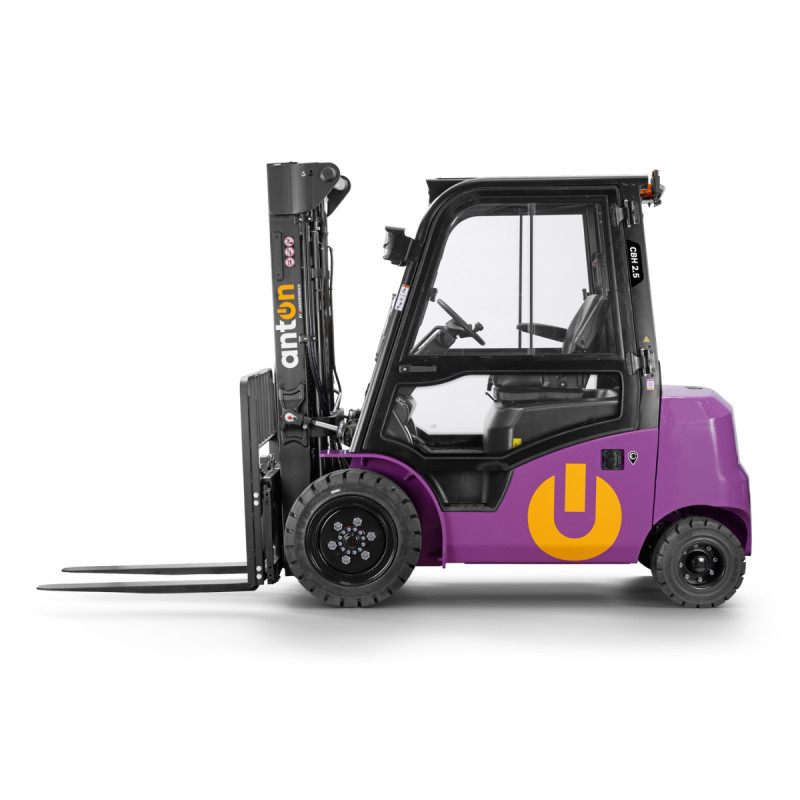

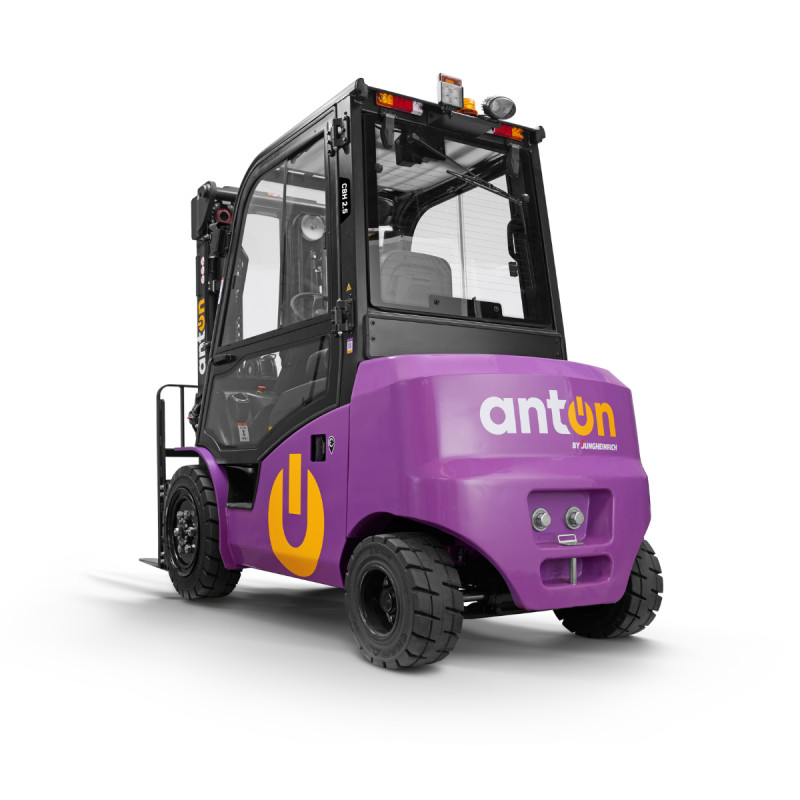

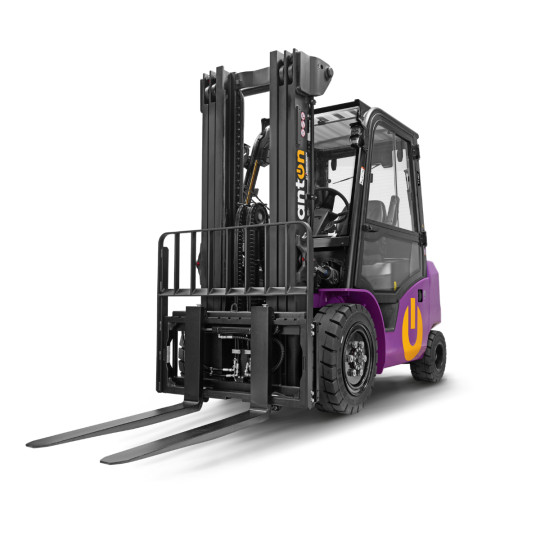

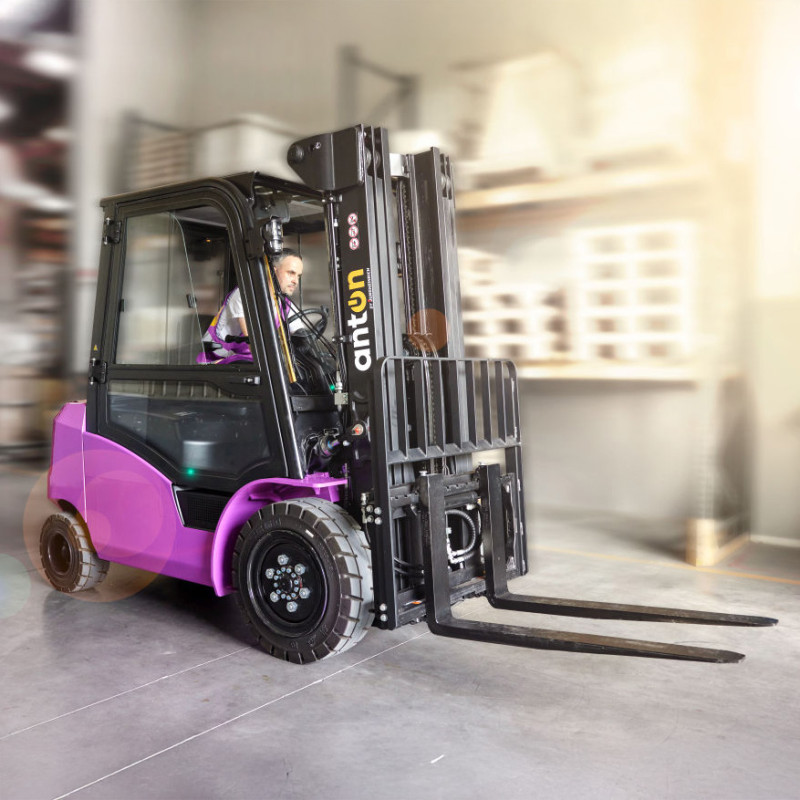

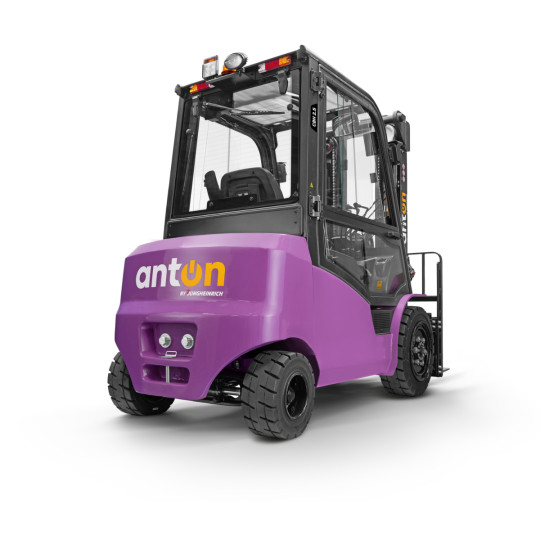

AntOn by Jungheinrich CBH electric forklift truck: built for use in changing environments

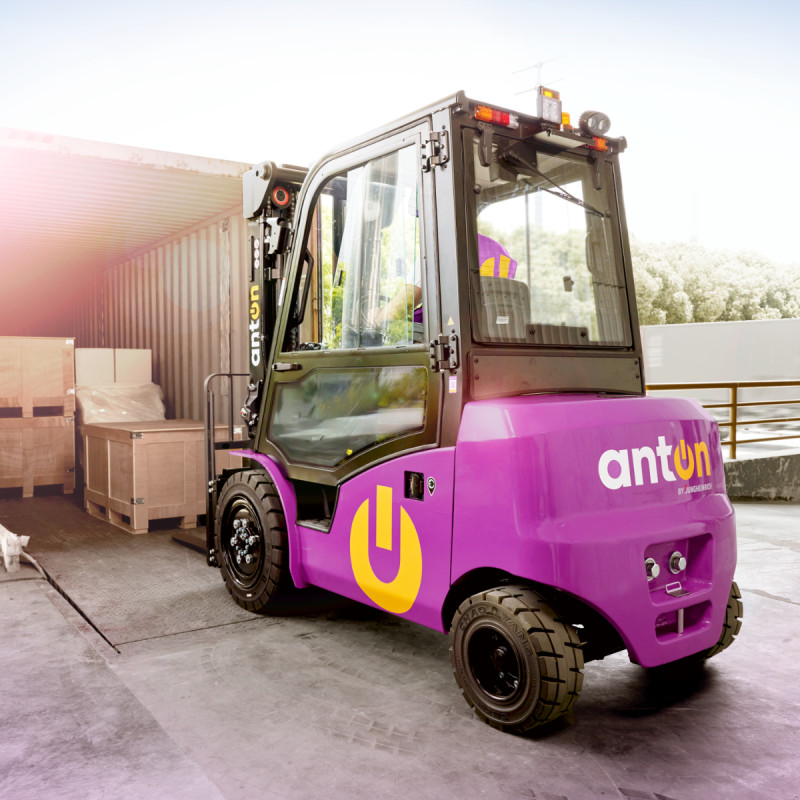

The AntOn by Jungheinrich CBH electric forklift truck combines what counts for daily operation: robust technology, easy handling and reliable performance. Whether in the warehouse, outdoors or at the loading ramp: the CBH is versatile and delivers exactly where it is needed. This electric forklift truck will always make your job easier – from internal transport, manoeuvrable applications in confined spaces and the rapid loading and unloading of HGVs. It excels not only in daily use but also through its fast availability and a price/performance ratio that makes transitioning to electromobility particularly appealing. With three carefully designed equipment variants and advanced lithium-ion power, the CBH offers exactly the flexibility your company needs today, making the choice easy – a forklift truck that simply works.

Versatile

Functional power for every job.

Two capacity options, each available in three equipment variants to match different applications, needs and budgets.
Compact and highly manoeuvrable – even in tight spaces.
Large tyres and high ground clearance for outdoor use on uneven ground.
Flexible charging options via an external or built-in charger, depending on the model.
Travel speeds up to 17 km/h for more efficient working.

Straightforward

Intuitive technology that makes work easier.

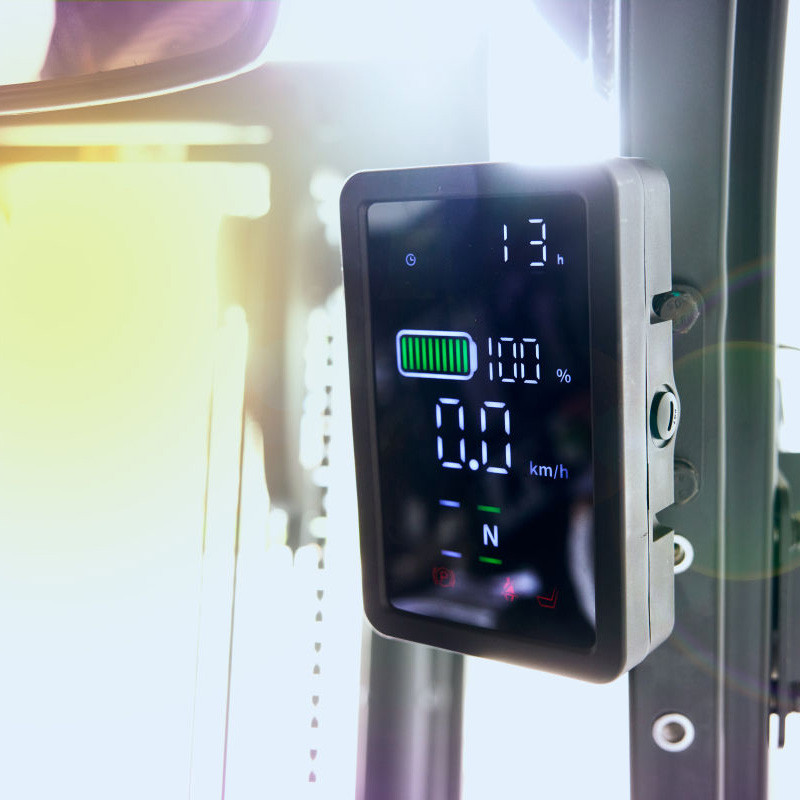

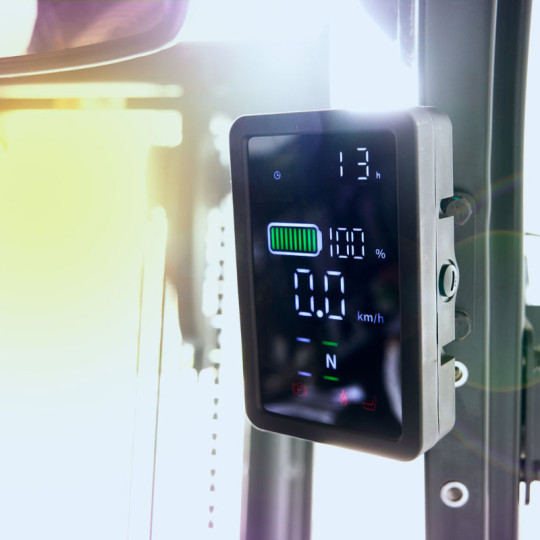

LED display with all key info at a glance.

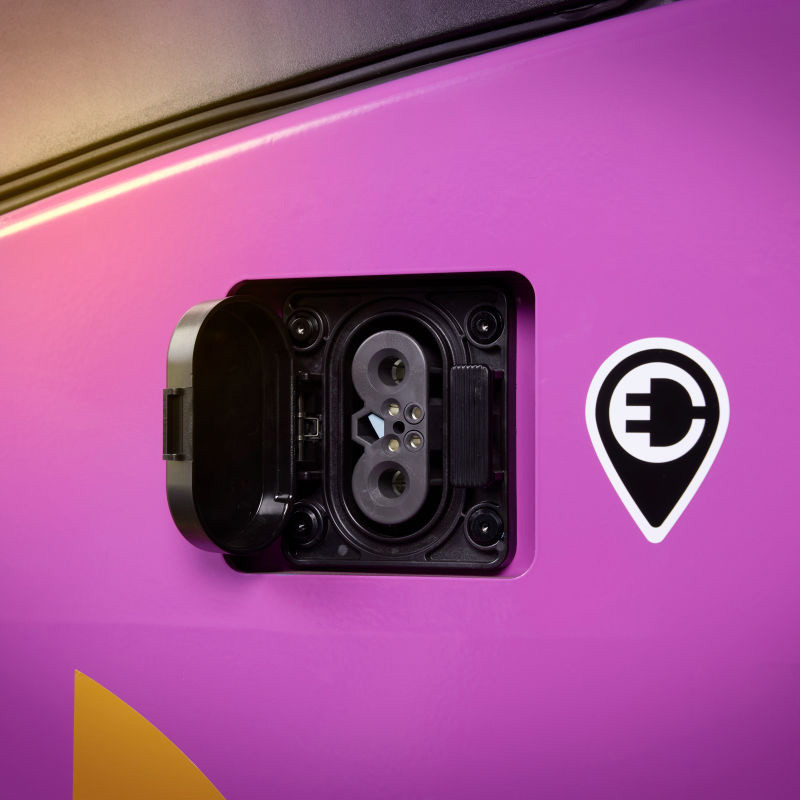

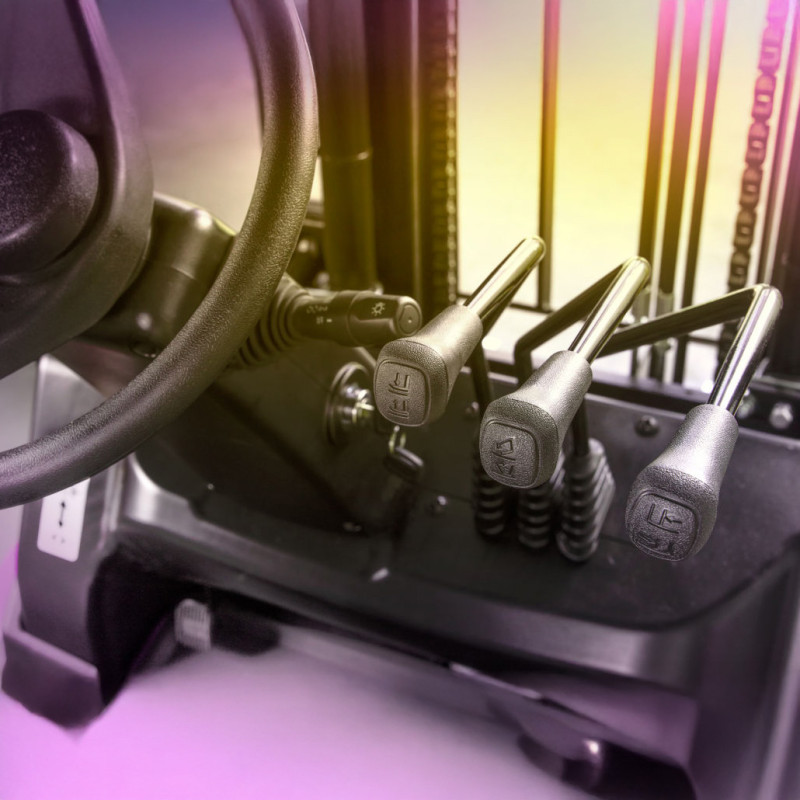

Simple control elements – from the control panel and comfortable pedal to the water-resistant charging port.
Optimum visibility for safer daily operation.

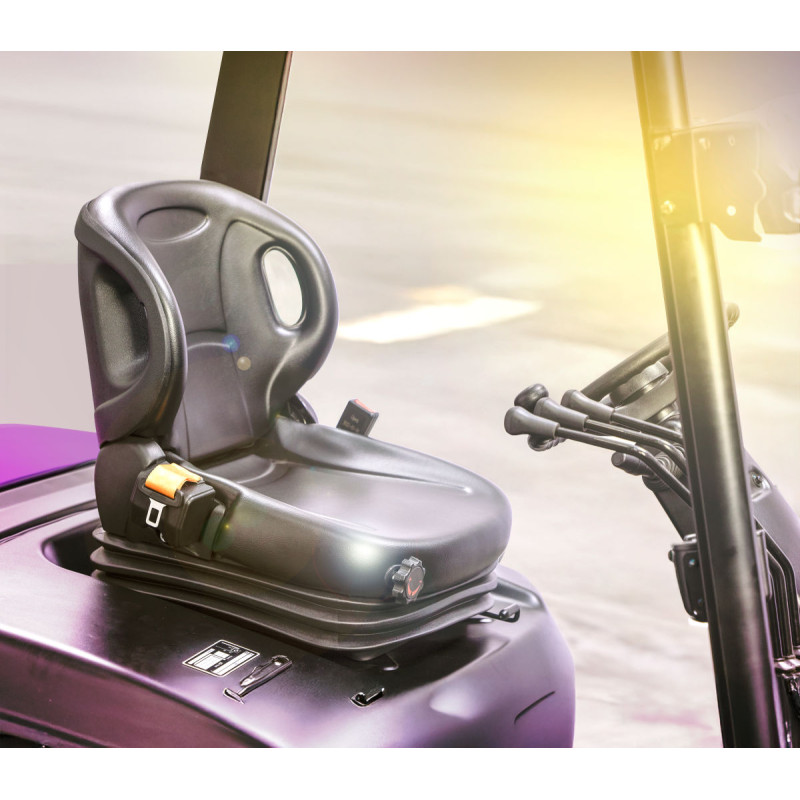

Ergonomic operator position with adjustable steering wheel and, depending on the variant, comfort seat and generous legroom.

Cost-effective

Solutions for every task and every budget.

Maintenance-free 80-V lithium-ion battery for long service life and short charging pauses.
Rapid lift speeds save time with every application.
High availability and cost-efficient acquisition.
Fast spare parts supply keeps your operations running smoothly.

Product Details

Drive: Electric
Capacity (Q): 2500 kg
Mast Type: Three-stage / Triplex mast with free lift (DZ)
Lift (h3): 4800 mm
Free lift (h2): 1240 mm
Retracted mast height (h1): 2265 mm
Extended mast height (h4): 5895 mm
Fork dimensions: 40 x 122 x 1150 mm
Sideshift: Hooked on
Lights: 1x combi light, rear
1x working light LED, front
1x working light LED, rear
Blue Floor-Spot rear
Strobe light
Additional equipment: Acoustic warning buzzer when reversing
Closed cabin Comfort 3
Comfort seat
Heating
Load guard
Rear-view mirror
Trailer coupling
Drive motor, performance S2 60 min: 17 kW
Travel speed, laden/unladen: 16 / 17 km/h
Lift motor, performance with S3: 26 kW
Lift speed with/without load: 0,5 / 0,56 m/s
Lowering speed with/without load: 0,54 / 0,56 m/s
Max. gradeability laden/unladen: 20 / 25 %
Battery type: Lithium-ion
Battery voltage: 80 V
Battery capacity: 230 Ah
Forklift type: Electric counterbalance truck
Wheels, number front/back (x-driven): 2x / 2
Tyres: Super-elastic (SE)

Downloads

CBH 2.5 - 3.0 spec sheet (3.54MB)

NEW

AntOn by Jungheinrich Electric forklift CBH 2.5 DZ 4800, ASS, ZH2, Com3

Name: AntOn by Jungheinrich Electric forklift CBH 2.5 DZ 4800, ASS, ZH2, Com3
Brand: AntOn by Jungheinrich
SKU: 52536542
Price: 28192.8 EUR
Availability: InStock
