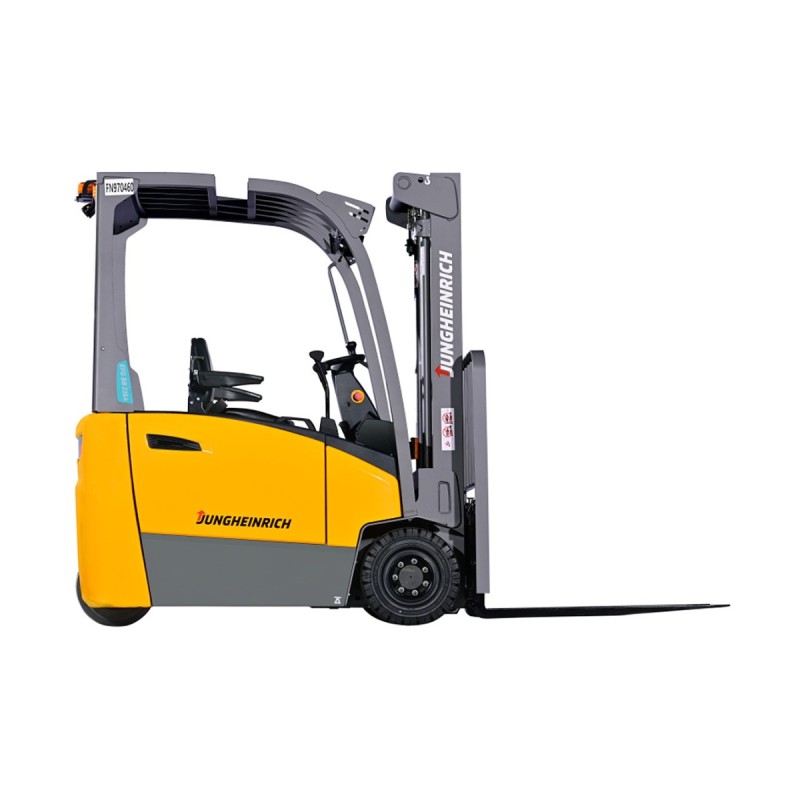

Jungheinrich EFG BB 216k counterbalance truck

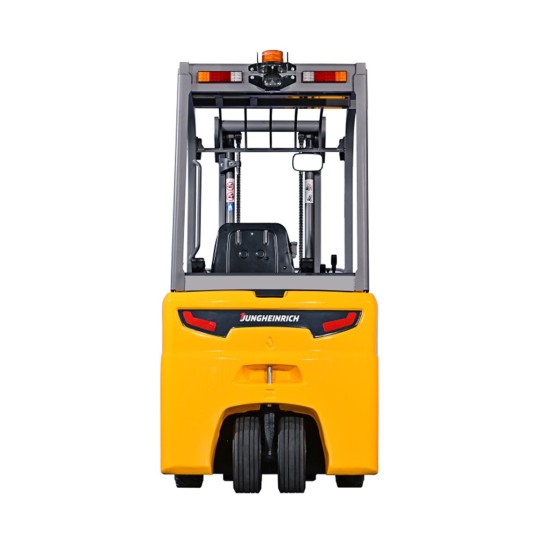

Jungheinrich EFG BB 216k counterbalance truck

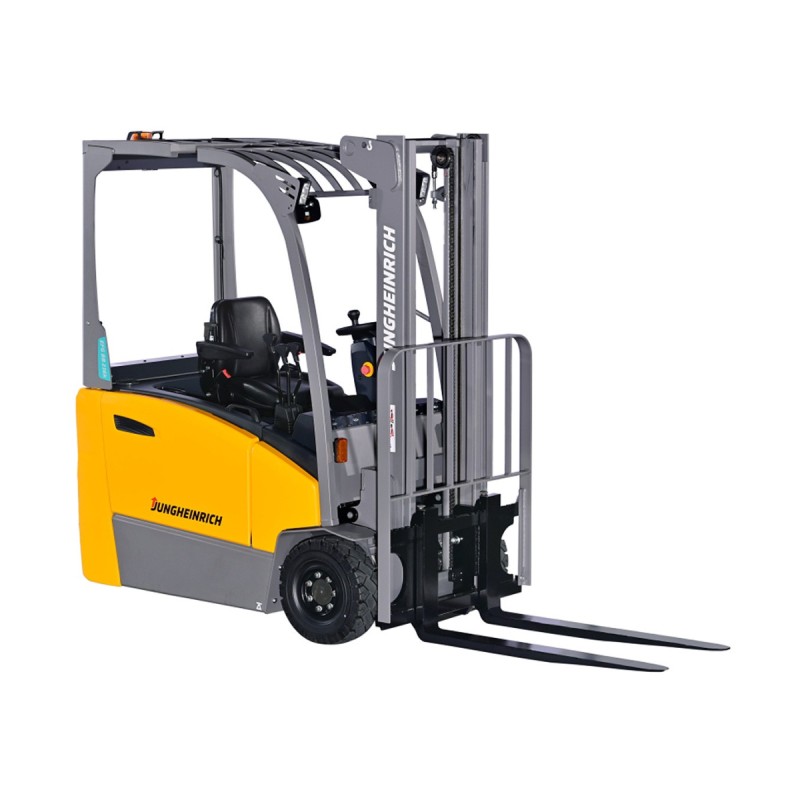

Jungheinrich EFG BB 216k counterbalance truck

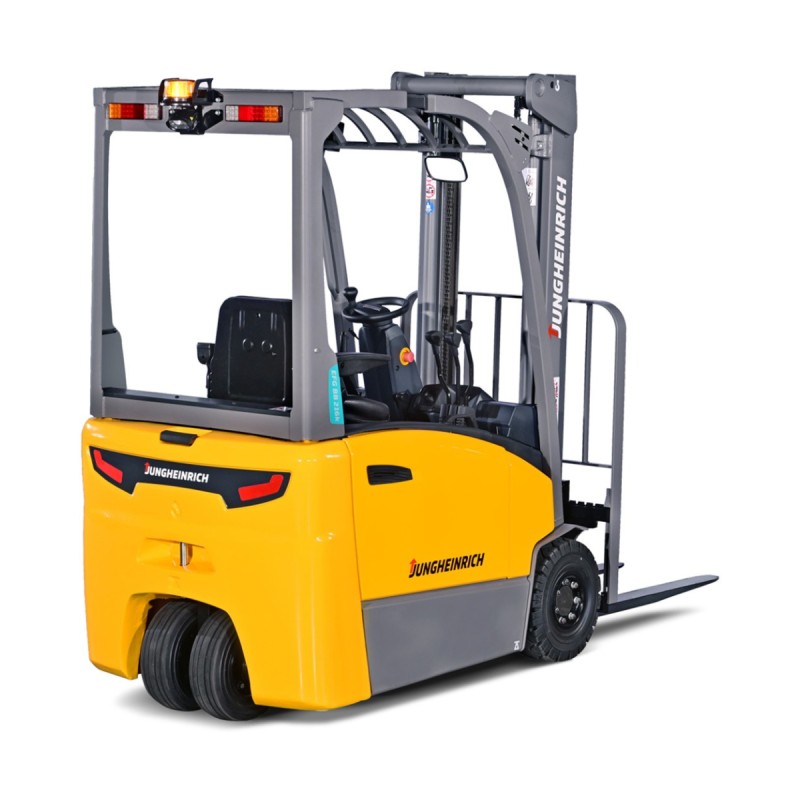

Jungheinrich EFG BB 216k counterbalance truck

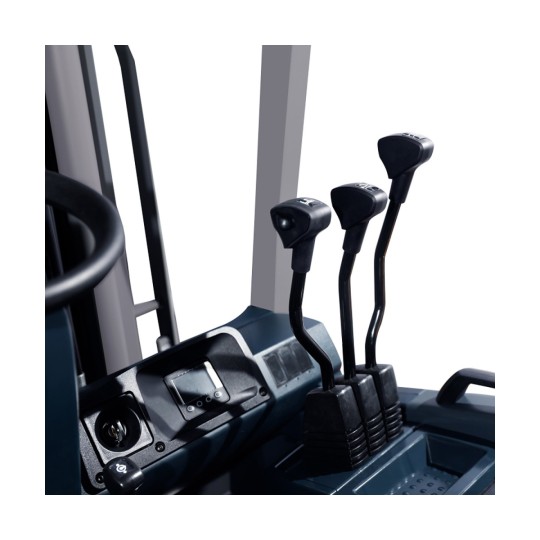

Jungheinrich EFG BB 216k counterbalance truck: Steering rods

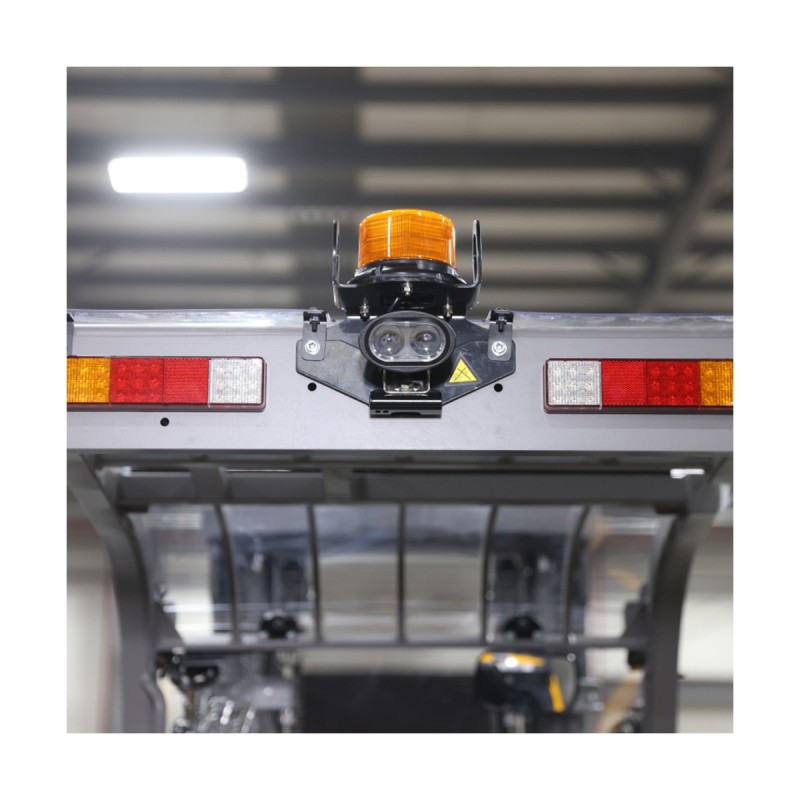

Jungheinrich EFG BB 216k counterbalance truck: Combi lights, strobe light, blue Floor-Spot

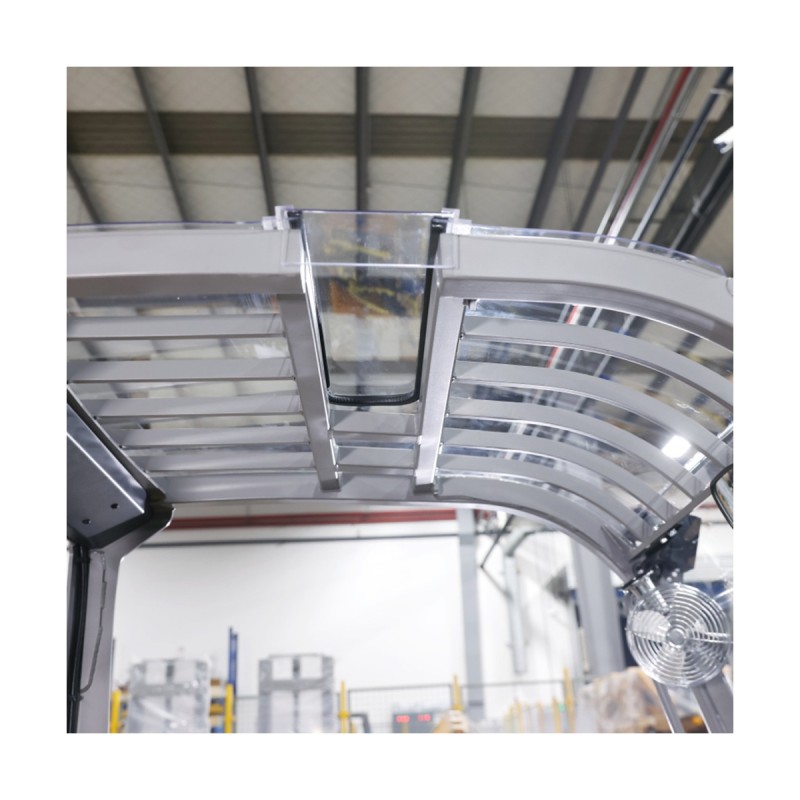

Jungheinrich EFG BB 216k counterbalance truck: Roof window

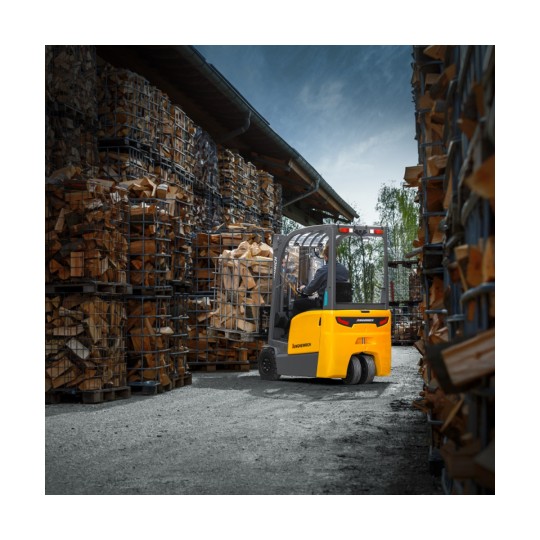

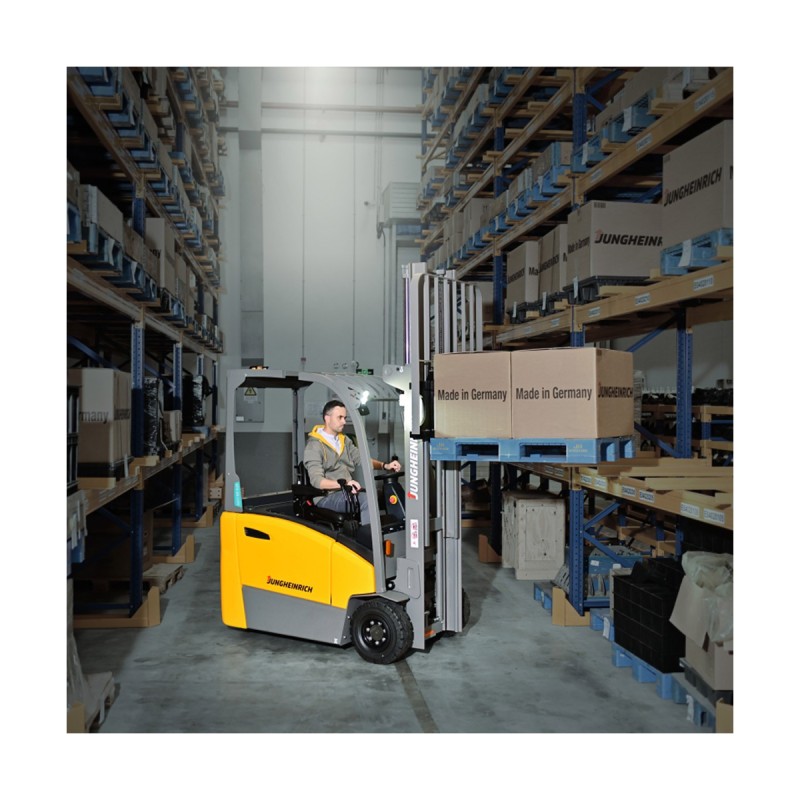

Jungheinrich EFG BB 216k counterbalance truck: Example of use
Jungheinrich EFG BB 216k counterbalance truck: Example of use
Jungheinrich EFG BB 216k counterbalance truck
Jungheinrich EFG BB 216k counterbalance truck
Jungheinrich EFG BB 216k counterbalance truck
Jungheinrich EFG BB 216k counterbalance truck
Jungheinrich EFG BB 216k counterbalance truck: Steering rods
Jungheinrich EFG BB 216k counterbalance truck: Combi lights, strobe light, blue Floor-Spot
Jungheinrich EFG BB 216k counterbalance truck: Roof window
Jungheinrich EFG BB 216k counterbalance truck: Example of use
Jungheinrich EFG BB 216k counterbalance truck: Example of use
1600 kg
1600 kg
1150 mm
1150 mm

Description

Versatile and reliable EFG Electric forklift trucks | BB Series

Our solid and versatile EFG electric forklift trucks of the BB Series are ideally suited to a wide range of transport and stacking tasks. Thanks to the compact design, the maneuverable three-wheel counterbalance forklift truck is particularly convincing for flexible transport in confined warehouses.

Key Features

  • Compact design: The minimized turning radius of the truck enables operation in very confined spaces.
  • Energy efficient: Electric motors with proven AC technology, in combination with highly efficient Jungheinrich batteries, ensure high performance with low energy consumption at all times.
  • Low operating costs: Durable, high-quality components and rigorous quality testing ensure reduced wear and reliable truck operation at all times.
  • High residual capacity: Stable mast profile and low center of gravity for increased load capacity.
  • Safe operation: curveCONTROL for automatic speed reduction when cornering.

Watch how EFG BB 216k is being used by Pure Ingredients on our YouTube channel.

Capacity (Q)
1600 kg
Mast Type
Three-stage / Triplex mast with free lift (DZ)
Lift (h3)
5000 mm
Free lift (h2)
1530 mm
Retracted mast height (h1)
2180 mm
Extended mast height (h4)
5555 mm
Fork length (l)
1150 mm
Fork height (s)
40 mm
Fork width (e)
100 mm
Fork dimensions
40 x 100 x 1150 mm
Turning radius (Wa)
1545 mm
Sideshift
Integrated
Lights
2x combi lights, rear
2x working light LED, front
Blue Floor-Spot front
Blue Floor-Spot rear
Strobe light
Additional equipment
Acoustic warning buzzer when reversing
Open cabin Economy 2
Panoramic rear-view mirror
Drive motor, performance S2 60 min
2x 3,7 kW
Travel speed, laden/unladen
15 / 15 km/h
Lift motor, performance with S3
10 kW
Lift speed with/without load
0,43 / 0,53 m/s
Lowering speed with/without load
0,51 / 0,55 m/s
Max. gradeability laden/unladen
13,5 / 16 %
Battery type
Lithium-ion
Battery voltage
48 V
Battery capacity
350 Ah
Charger
48V/200,0A/400V
Wheels, number front/back (x-driven)
2x / 2
Tyres
Super-elastic (SE), non-marking
Series
BB (3-wheel)
Battery manufacturer
EIKTO
Battery warranty
2 years or 3000 o.h., whatever occurs first

    • Jungheinrich EFG BB 216k DZ 500, Li-ion

    • Triplex DZ mast 5000 mm
    • Strong and concise design
    • Energy-efficient operation
    • Comfortable and safe operation
    • IN STOCK!

    €27,000.00
    Tax excluded
    Jungheinrich-EFG-BB-216k-DZ-500-F5031776
    Status: In stock (JH local warehouse)

    Delivery: In 2-5 days
