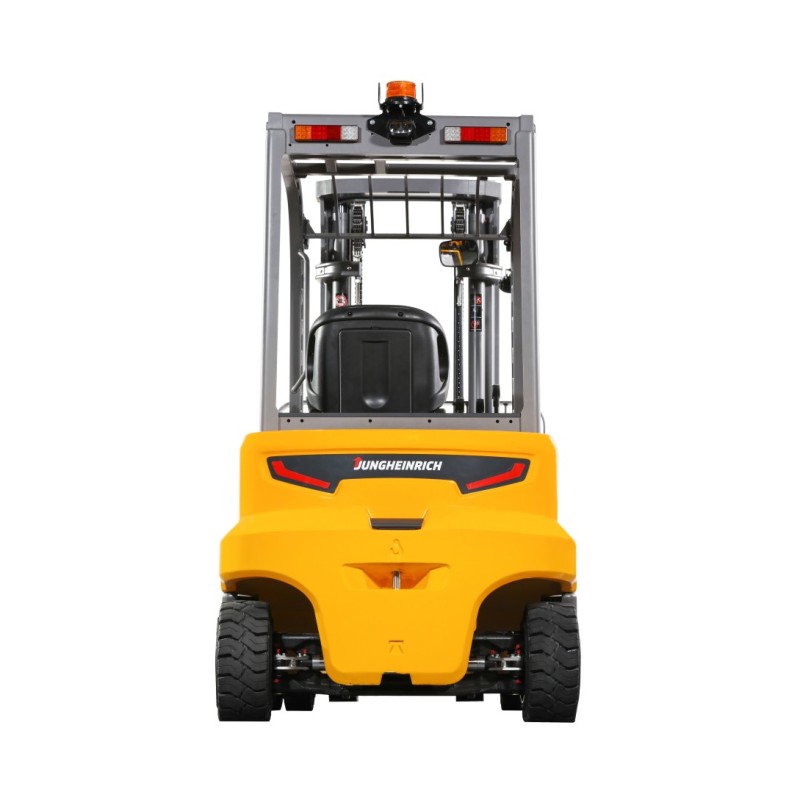

Jungheinrich EFG BC 330 counterbalance truck
Jungheinrich EFG BC 330 counterbalance truck
Jungheinrich EFG BC 330 counterbalance truck

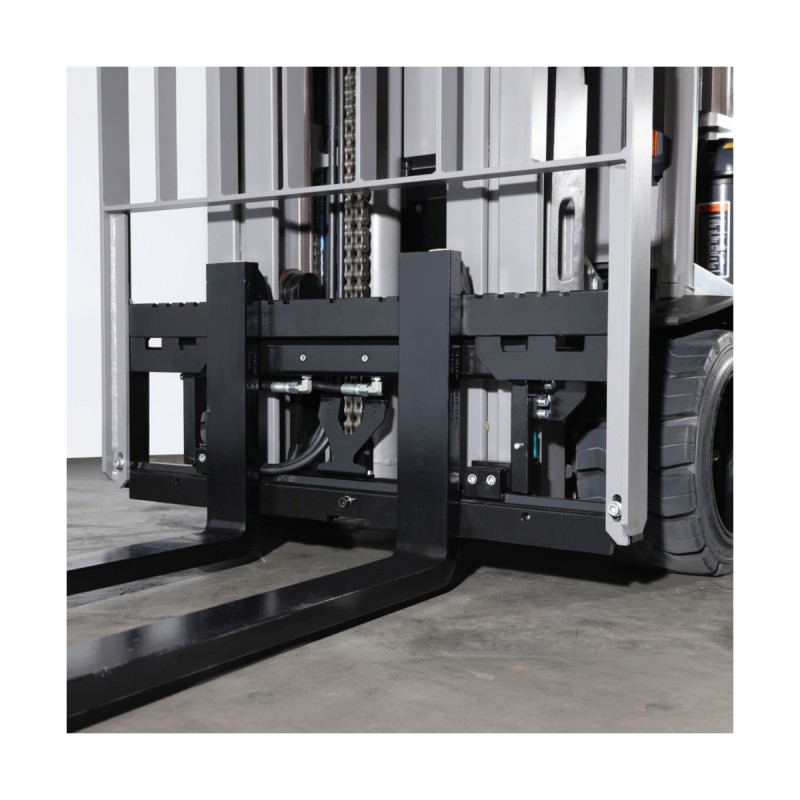

Jungheinrich EFG BC 330 counterbalance truck: Sideshift

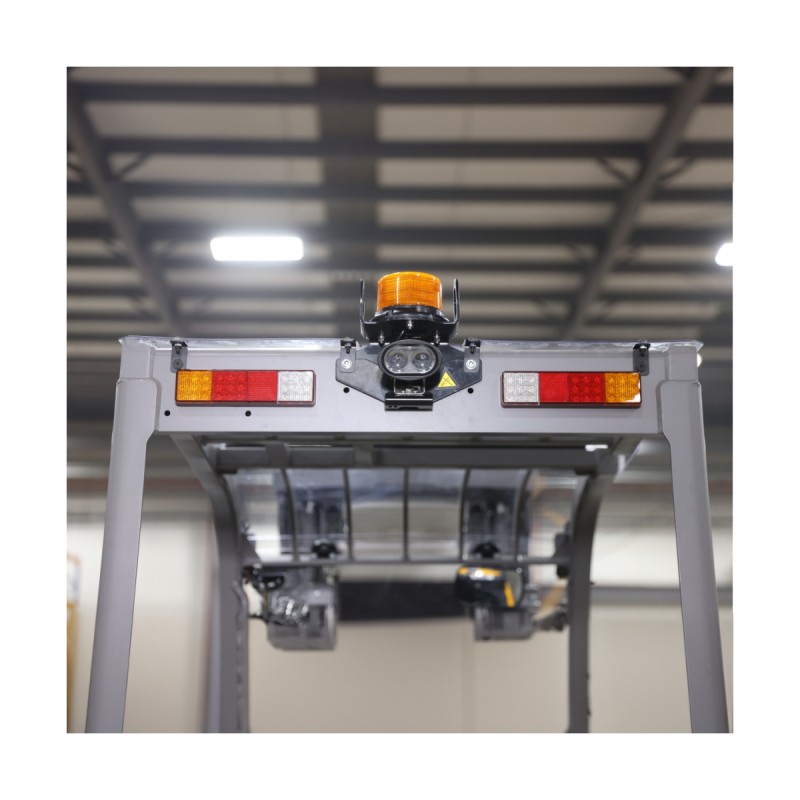

Jungheinrich EFG BC 330 counterbalance truck: Combi lights, strobe light, blue Floor-Spot

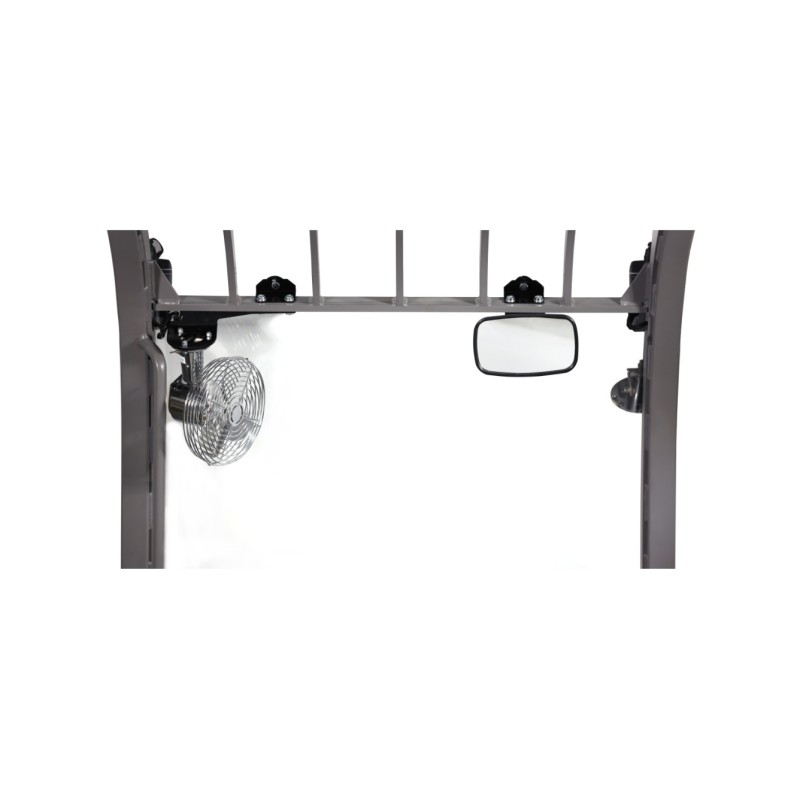

Jungheinrich EFG BC 330 counterbalance truck: Panoramic rear-view mirror

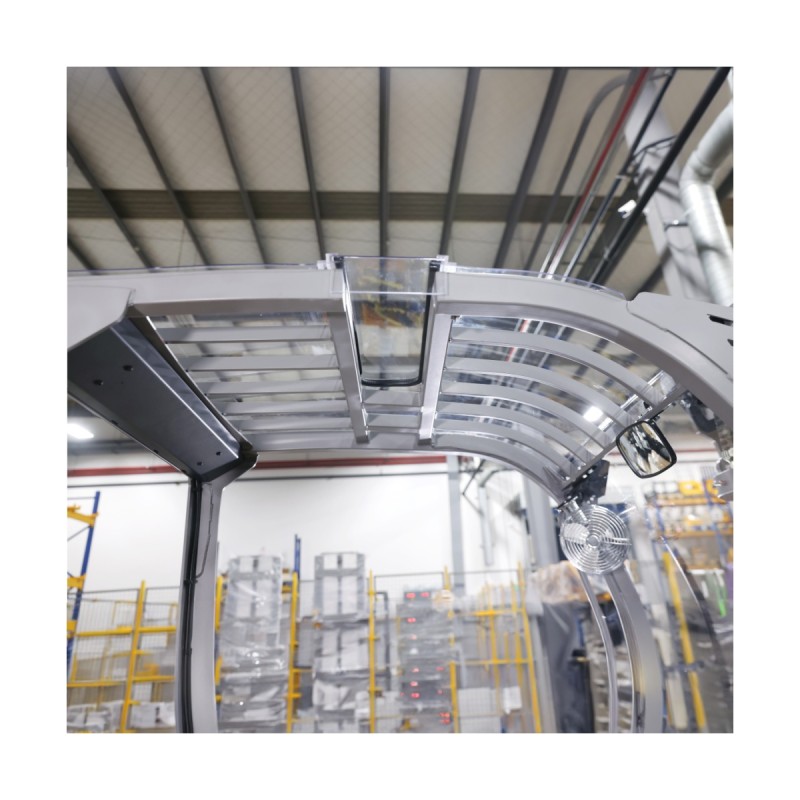

Jungheinrich EFG BC 330 counterbalance truck: Roof window

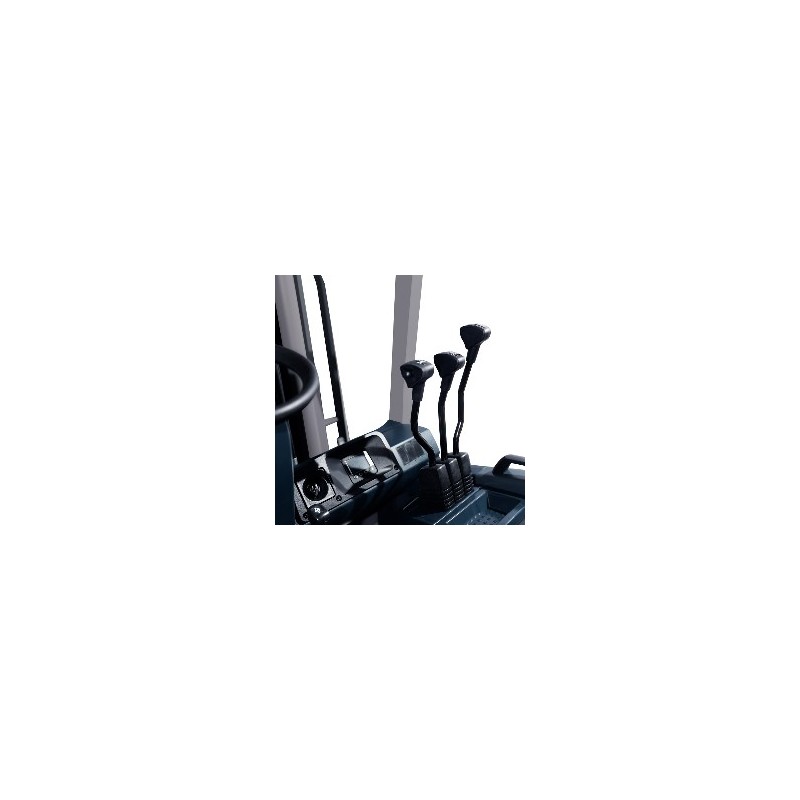

Jungheinrich EFG BC 330 counterbalance truck: Steering rods

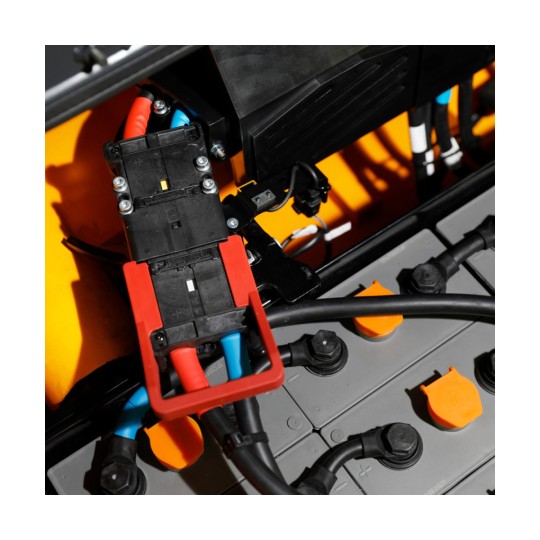

Jungheinrich EFG BC 330 counterbalance truck: Lead acid battery

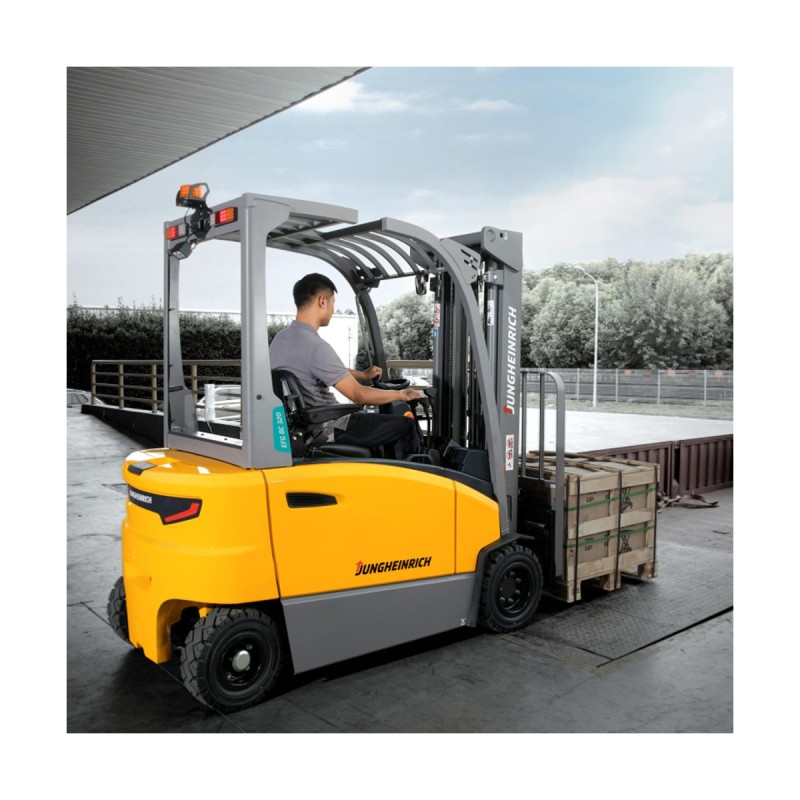

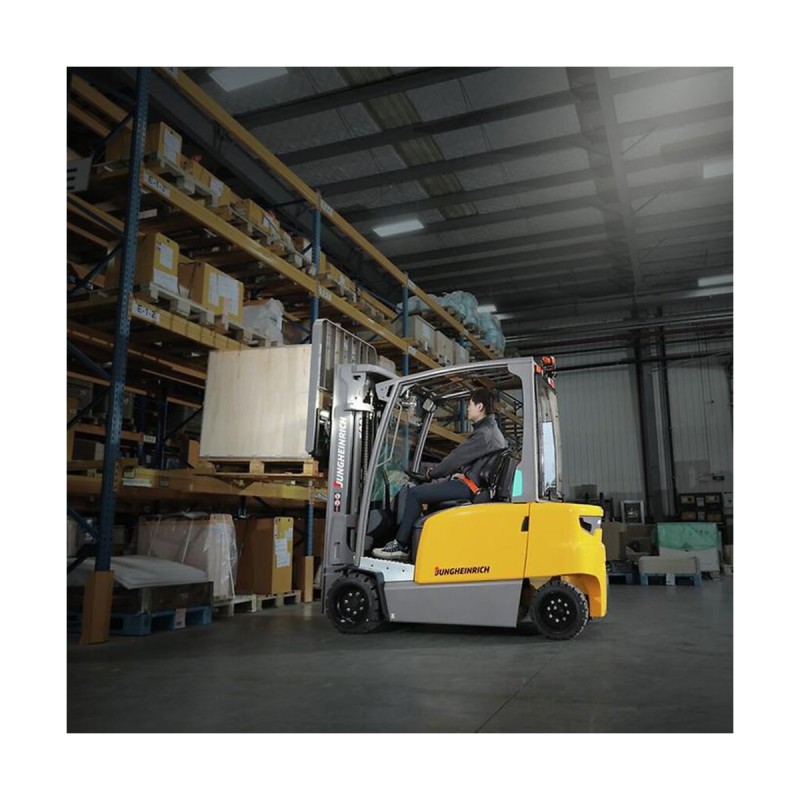

Jungheinrich EFG BC 330 counterbalance truck: Example of use

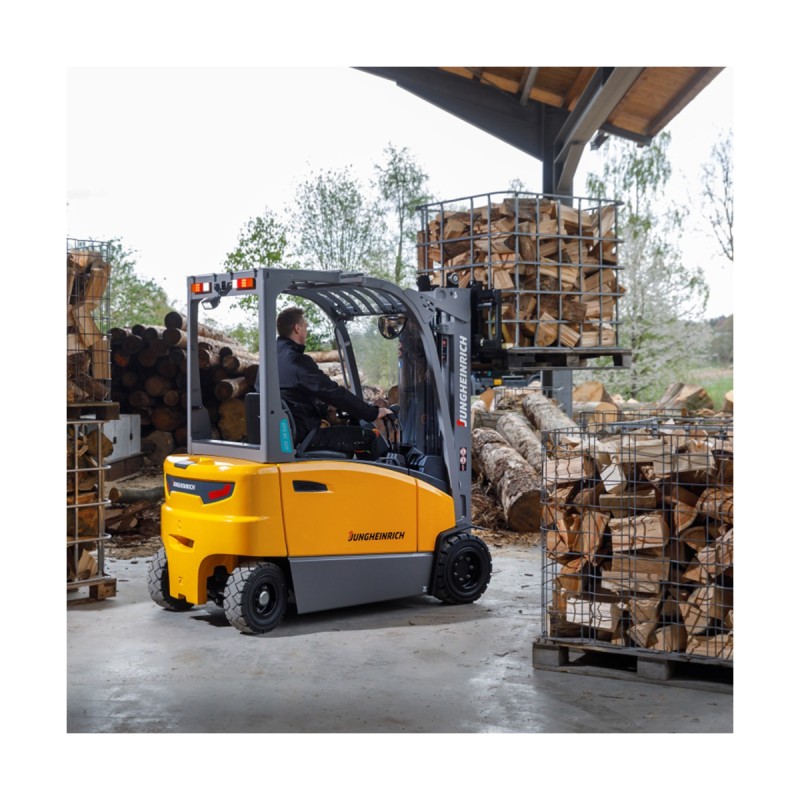

Jungheinrich EFG BC 330 counterbalance truck: Example of use
Jungheinrich EFG BC 330 counterbalance truck: Example of use
Jungheinrich EFG BC 330 counterbalance truck
Jungheinrich EFG BC 330 counterbalance truck
Jungheinrich EFG BC 330 counterbalance truck
Jungheinrich EFG BC 330 counterbalance truck: Sideshift
Jungheinrich EFG BC 330 counterbalance truck: Combi lights, strobe light, blue Floor-Spot
Jungheinrich EFG BC 330 counterbalance truck: Panoramic rear-view mirror
Jungheinrich EFG BC 330 counterbalance truck: Roof window
Jungheinrich EFG BC 330 counterbalance truck: Steering rods
Jungheinrich EFG BC 330 counterbalance truck: Lead acid battery
Jungheinrich EFG BC 330 counterbalance truck: Example of use
Jungheinrich EFG BC 330 counterbalance truck: Example of use
Jungheinrich EFG BC 330 counterbalance truck: Example of use
2000 kg
2000 kg
1150 mm
1150 mm

Description

Simple and impressively powerful electric counterbalance forklift trucks EFG | BC Series

The powerful and rock-solid EFG electric four-wheel counterbalance forklift trucks in the BC Series are perfectly suited to a wide range of transport and stacking tasks. With robust mast feature and a high residual capacity of up to 5 meters, they offer the optimum combination of stability and maneuverability.

Key Features

  • Dual-motor front-wheel drive with ZF gearbox: Ensures maximum performance with low consumption and a minimized turning radius.
  • Stability and safety: High-pivot steering axle provides even weight distribution and compensates for rough surfaces.
  • Energy efficiency: Proven AC technology, regenerative braking, and maintenance-free dual motors for long operating times and low energy consumption.
  • Safety and comfort: curveCONTROL for automatic speed reduction.
  • Optimum price/performance ratio: stringent quality tests and robust components guarantee reliable operation and low wear at all times.
Capacity (Q)
2000 kg
Mast Type
Three-stage / Triplex mast with free lift (DZ)
Lift (h3)
5000 mm
Free lift (h2)
1530 mm
Retracted mast height (h1)
2180 mm
Extended mast height (h4)
5635 mm
Fork length (l)
1150 mm
Fork height (s)
40 mm
Fork width (e)
100 mm
Sideshift
Hooked on
Lights
2x combi lights, rear
2x working light LED, front
Blue Floor-Spot front
Blue Floor-Spot rear
Strobe light
Additional equipment
Acoustic warning buzzer when reversing
Closed cabin Comfort 3
Heating
Panoramic rear-view mirror
Drive motor, performance S2 60 min
2x 3,7 kW
Travel speed, laden/unladen
15 / 15 km/h
Lift motor, performance with S3
10 kW
Lift speed with/without load
0,34 / 0,44 m/s
Lowering speed with/without load
0,51 / 0,55 m/s
Max. gradeability laden/unladen
11 / 15 %
Battery type
Lithium-ion
Battery voltage
48 V
Battery capacity
350 Ah
Charger
48V/200,0A/400V
Wheels, number front/back (x-driven)
2x / 2
Tyres
Super-elastic (SE), non-marking
Series
BC (4-wheel)
Battery manufacturer
EIKTO
Battery warranty
2 years or 3000 o.h., whatever occurs first

    • Jungheinrich EFG BC 320 DZ 500, Li-ion

    Electric four-wheel counterbalance forklift truck with load capacity 2t

    • Triplex DZ mast 5000 mm
    • Strong and concise design
    • Energy-efficient operation
    • Comfortable and safe operation
    • IN STOCK!

    €29,000.00
    Tax excluded
    Jungheinrich-EFG-BC-320-DZ-500-F5031779
    Status: In stock (JH local warehouse)


    SECURE Payment options
