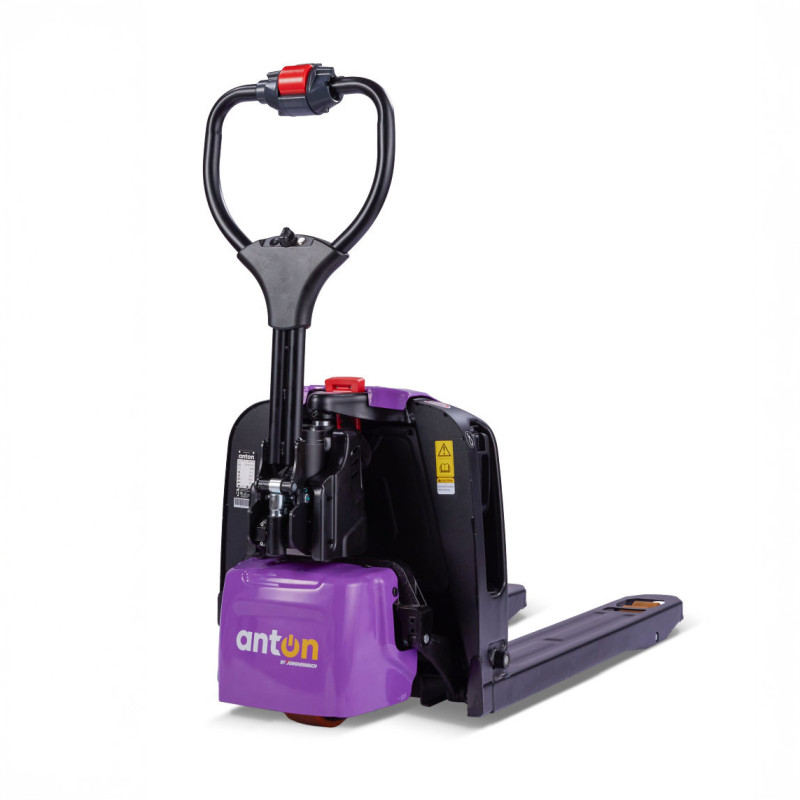

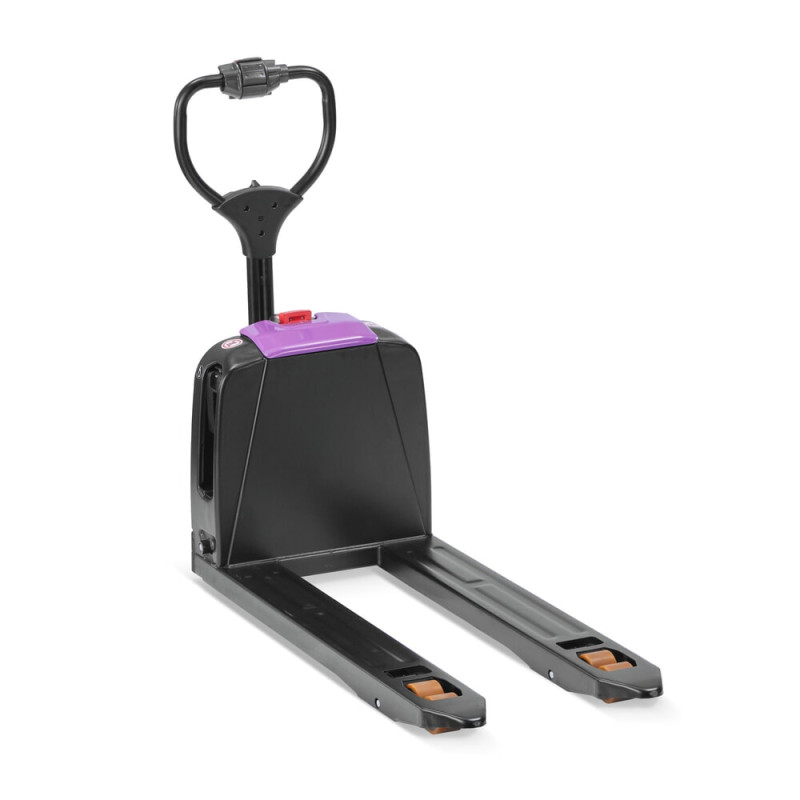

Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5
Electric pedestrian pallet truck | PTL 1.5 | 685 x 1150 mm | AntOn by Jungheinrich
1500 kg
1500 kg
685 mm
685 mm

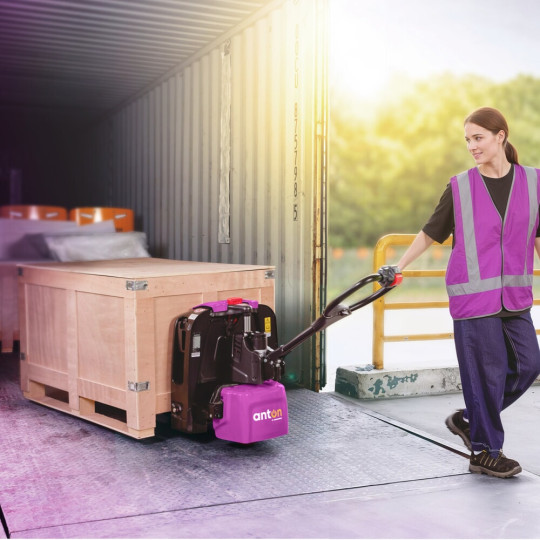

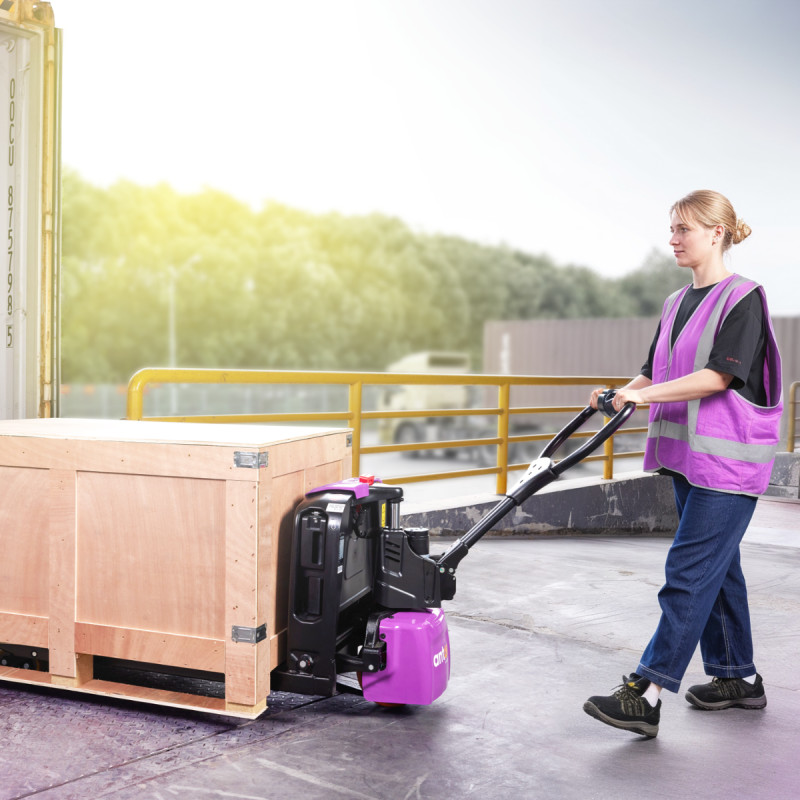

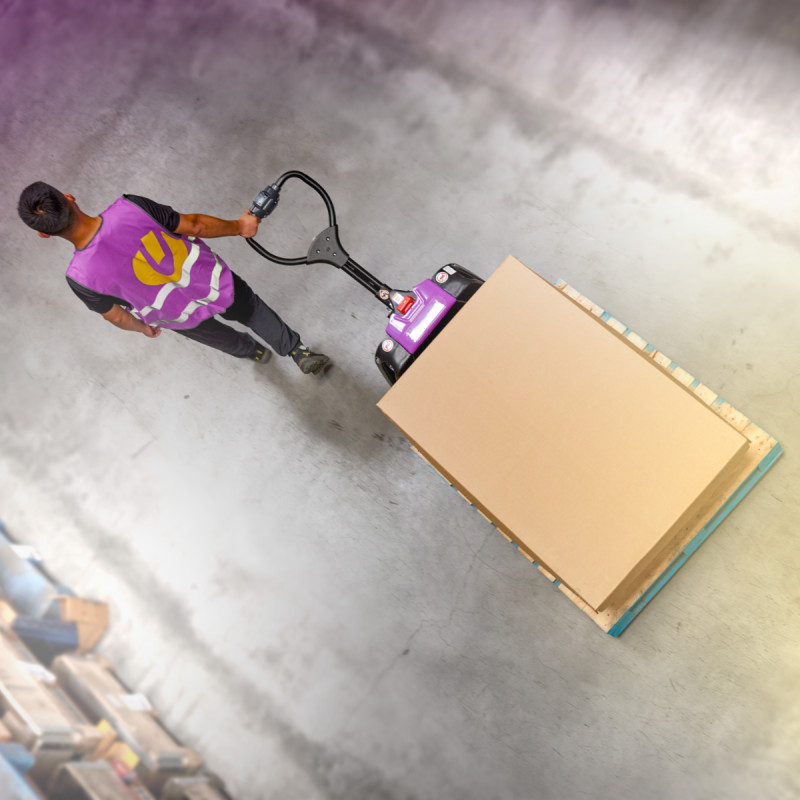

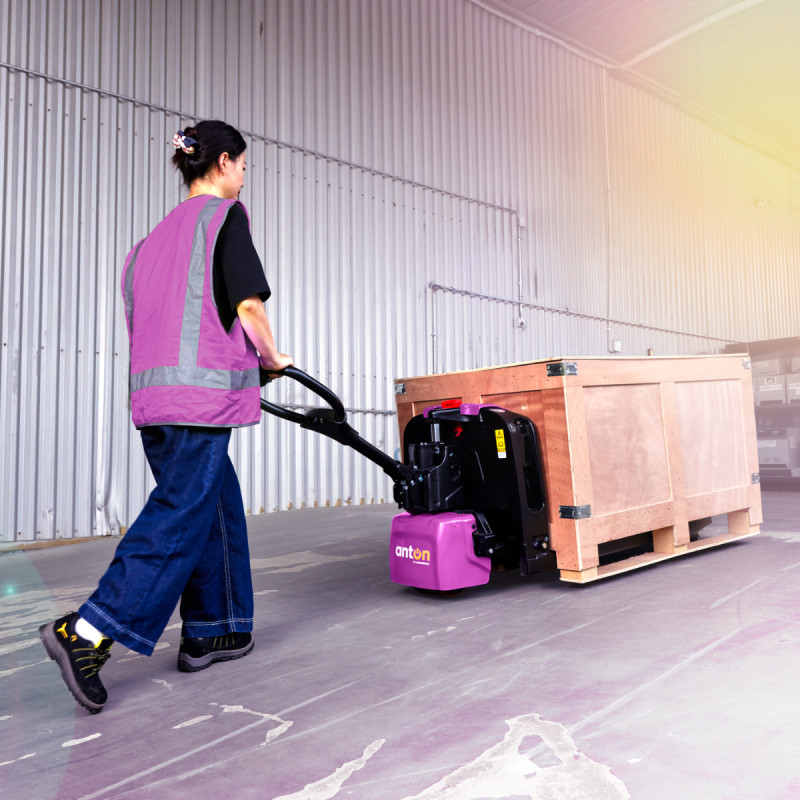

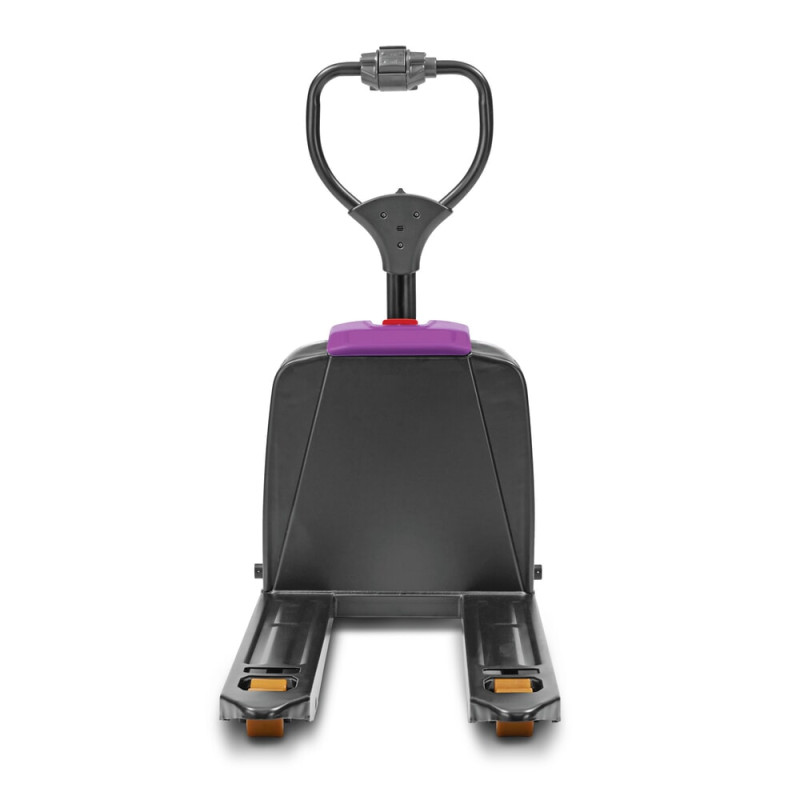

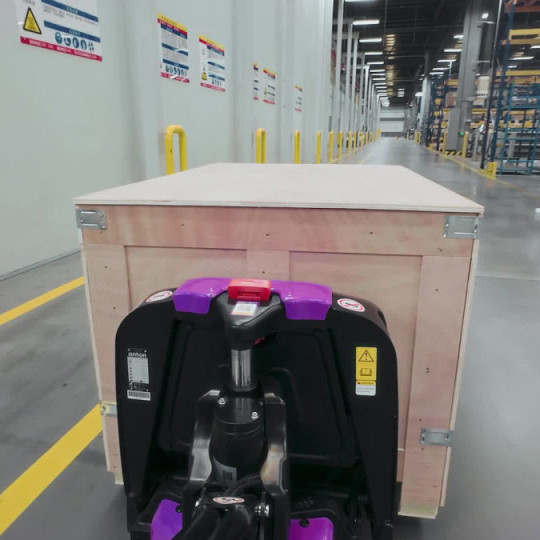

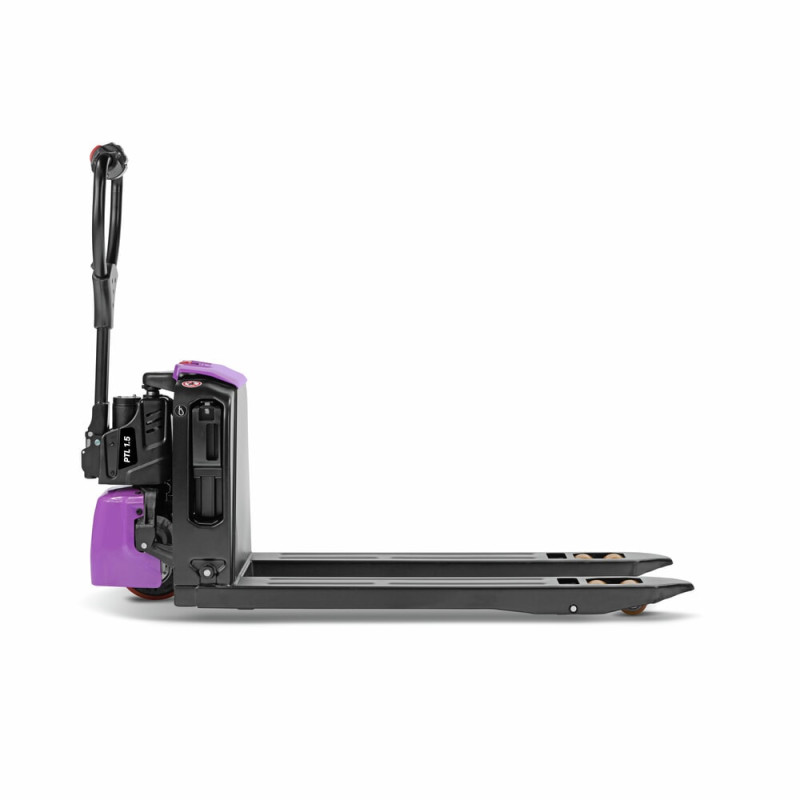

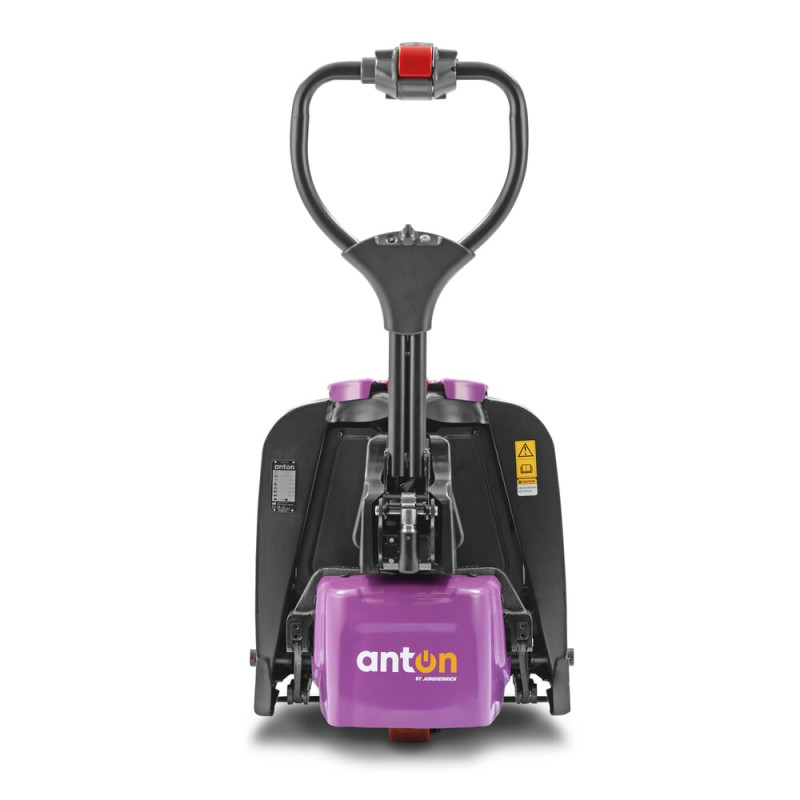

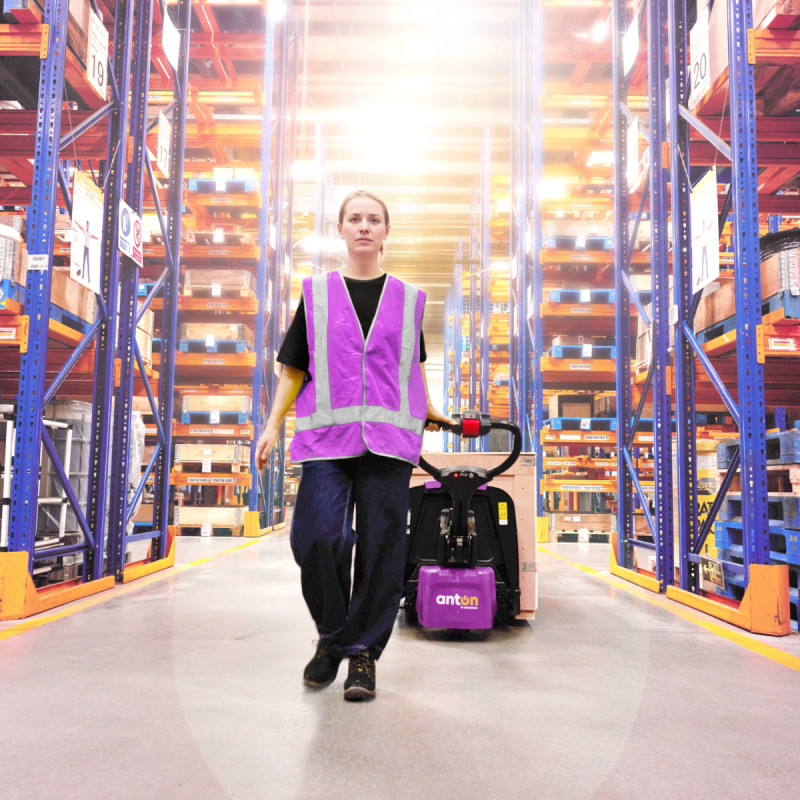

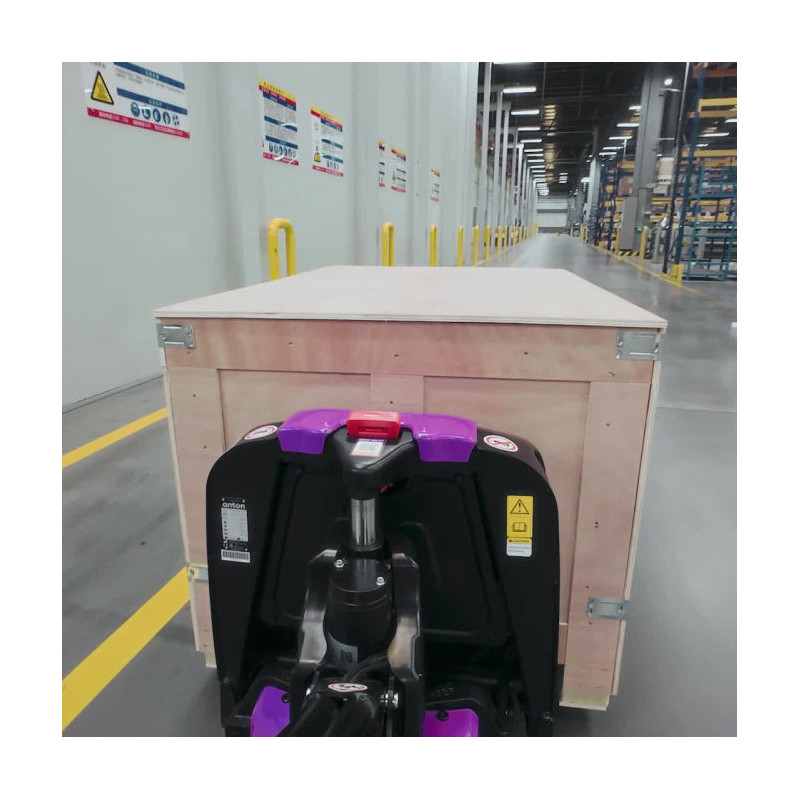

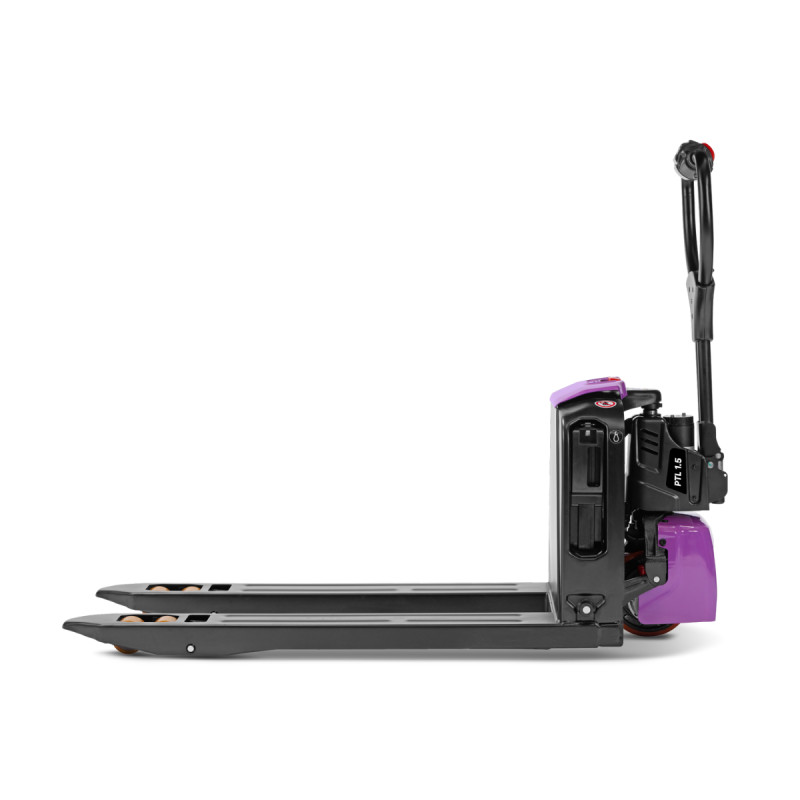

AntOn by Jungheinrich PTL 1.5: ideal for use in warehouses, outdoors or on HGVs

The AntOn by Jungheinrich PTL 1.5 is an entry-level model that has everything you need for your daily work – the electric pallet truck is compact and easy to operate. In the warehouse, at the shop or on the HGV: the PTL 1.5 adapts flexibly to a wide range of tasks – doing exactly what you expect of it.

Equipped with modern lithium-ion technology and well-thought-out functions, it will swiftly become a reliable all-rounder. If you require longer operating times, the PTL 1.5 can be equipped with a second removable battery for additional power.

Designed for robust and reliable daily operation, it impresses with both its performance and its short delivery times. And all this at a price that makes it a smart choice for every situation – whether for newcomers or as an addition to your existing fleet.

Versatile

One truck for every task – maximum flexibility.

  • The perfect addition for various transport jobs with different fork widths.
  • Equipment options for special requirements: stabilising wheels for more safety over uneven ground. Second battery socket for greater availability.
  • Compact design – ideal for use on HGVs and precise manoeuvring in confined spaces.

Straightforward

Built for function and simplicity.

  • Easy to use and handle – suitable for all staff.
  • External charger for rapid booster charging.

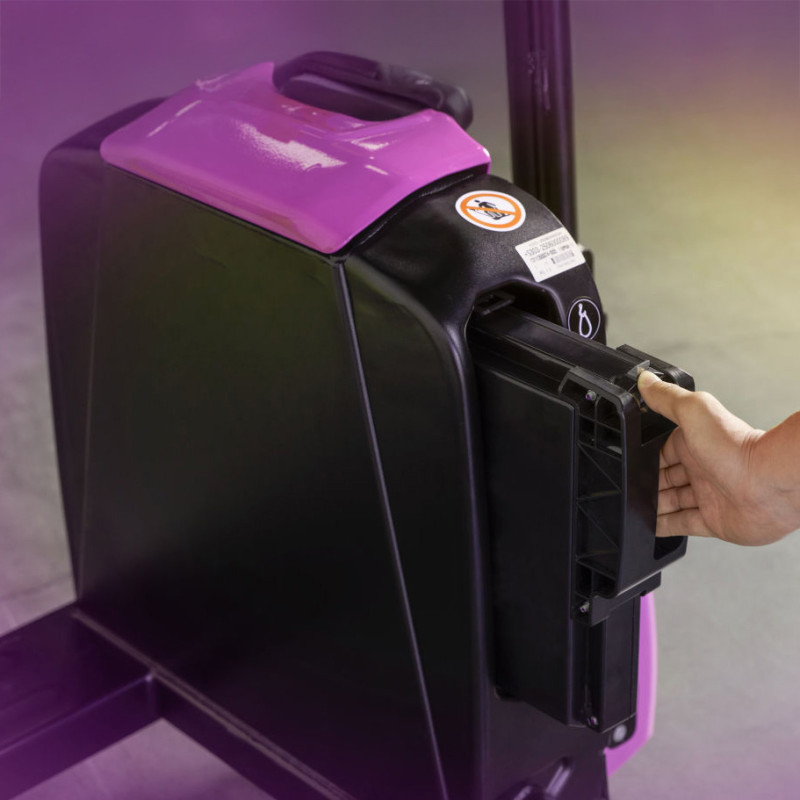

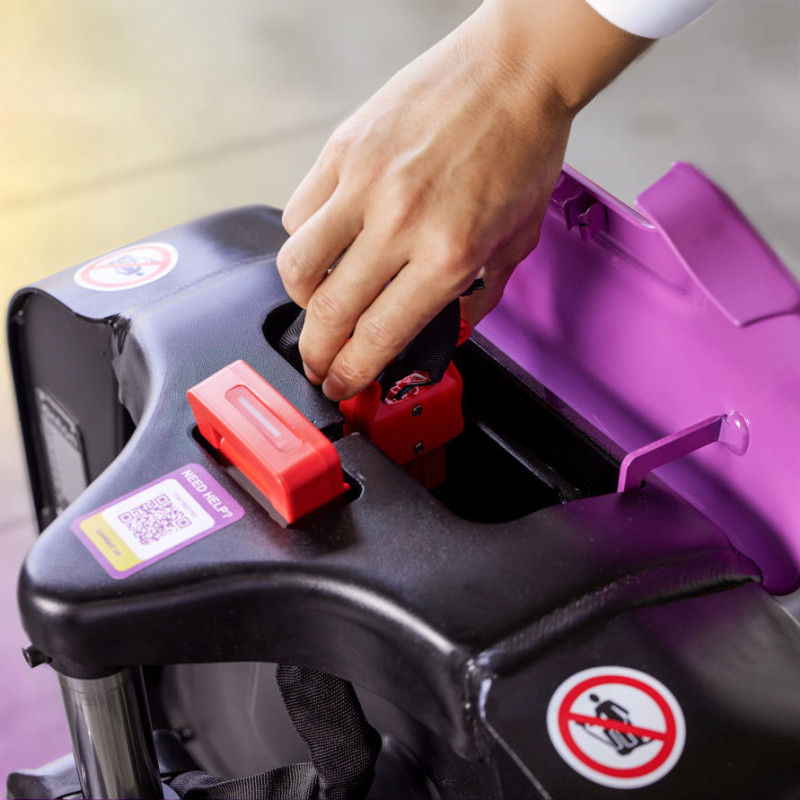

  • Effortless battery exchange thanks to practical plug-in system.
  • Simple self-service with video guides.

Cost-effective

Strong performance at a smart price.

  • Cost-effective to buy and operate.
  • Enduring power with up to 2 x 24 V to 20 Ah removeable lithiumion batteries.
  • Reduces physical strain on the operator and improves workplace efficiency.
  • Robust and durable technology ensures reliable operation.
  • One truck. Many applications.
Drive
Electric
Operator type
Pedestrian
Capacity (Q)
1500 kg
Load centre distance (c)
600 mm
Lift (h3)
105 mm
Overall length (l1)
1550 mm
Overall width (b1)
695 mm
Fork dimensions
55 x 150 x 1150 mm
Width across forks (b5)
685 mm
Ground clearance
27 mm
Turning radius (Wa)
1360 mm
Drive motor, performance S2 60 min
0,75 kW
Travel speed, laden/unladen
4 / 4,5 km/h
Lift motor, performance with S3
0,5 kW
Lift speed with/without load
0,02 / 0,02 m/s
Lowering speed with/without load
0,06 / 0,04 m/s
Max. gradeability laden/unladen
6 / 16 %
Battery type
Lithium-ion
Battery voltage
24 V/per unit
Battery capacity
20 Ah/per unit
Charger
External
Drive wheel material
Polyurethane (PU)
Fork roller material
Polyurethane (PU)
Fork roller equipment
Tandem
Forklift type
Electric pallet truck

Accessories

To add an item to the cart, select the desired quantity.

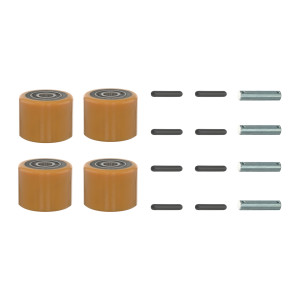

Self-service kit | Load...
Status: In stock (JH central warehouse)
€130.00
Please select additional amount.

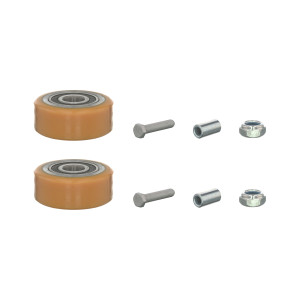

Self-service kit | Support...
Status: In stock (JH central warehouse)
€63.00
Please select additional amount.

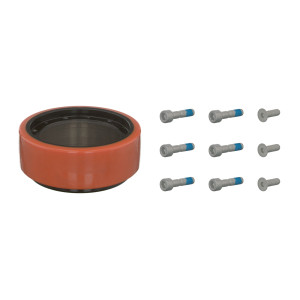

Self-service kit | Drive...
Status: In stock (JH central warehouse)
€69.00
Please select additional amount.
Self-service kit | Drive...
Status: In stock (JH central warehouse)
€74.00
Please select additional amount.

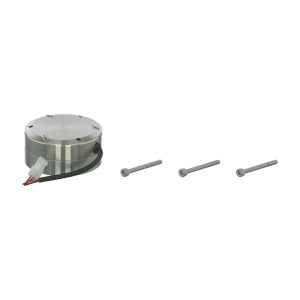

Self-service kit | Brake...
Status: In stock (JH central warehouse)
€84.00
Please select additional amount.

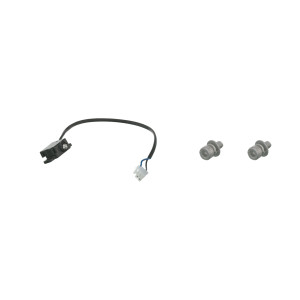

Self-service kit | Tiller...
Status: In stock (JH central warehouse)
€34.00
Please select additional amount.

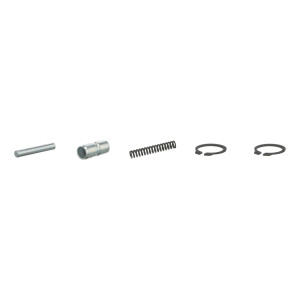

Self-service kit | Drawbar...
Status: In stock (JH central warehouse)
€38.00
Please select additional amount.

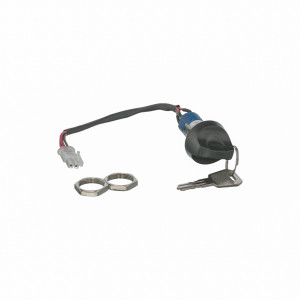

Key switch for AntOn by...
Status: In stock (JH central warehouse)
€58.00
Please select additional amount.

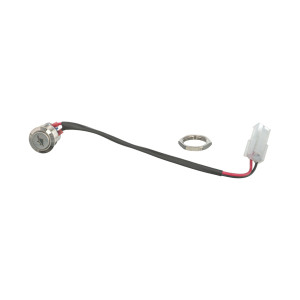

Turtle speed release button...
Status: In stock (JH central warehouse)
€31.00
Please select additional amount.

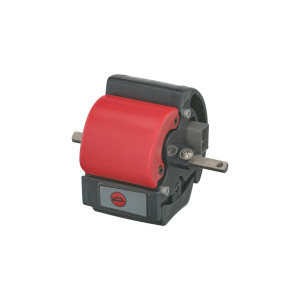

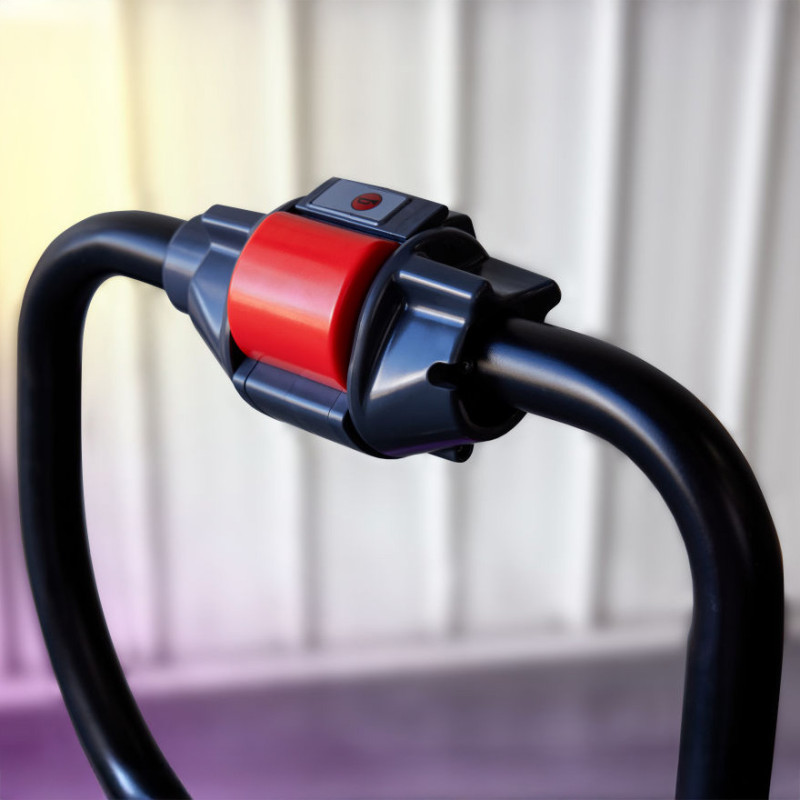

Handle head assembly for...
Status: In stock (JH central warehouse)
€90.00
Please select additional amount.

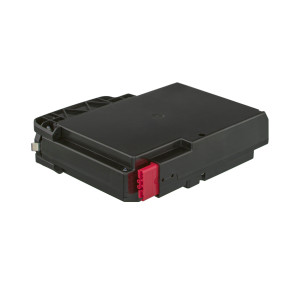

LI-ION BATTERY for AntOn by...
Status: In stock (JH central warehouse)
€368.50
Please select additional amount.

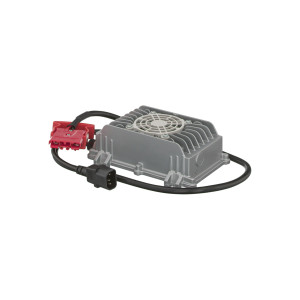

Charger for Li-ion battery...
Status: In stock (JH central warehouse)
€120.50
Please select additional amount.
  • NEW
  • AntOn by Jungheinrich Electric pedestrian pallet truck PTL 1.5, 685x1150 mm

    Quickly available to meet urgent demand.

    • Capacity 1500 kg, fork length 1150 mm
    • Lithium-ion technology for fast charging and consistent performance
    • High spare parts and "Self-service" kits availability provide reduced downtime
    • Always robust, reliable, and flexible.

    €1,165.00
    €900.00 You Save €265.00
    Tax excluded
    52539307
    Status: In stock (JH central warehouse)

    Delivery: In 1-3 weeks
