Description
Jungheinrich AME 13 Electric Pallet Truck – Lithium-Ion Powered Efficiency
Smart Entry-Level Solution for Efficient Pallet Handling
The Jungheinrich AME 13 electric pallet truck is the ideal entry-level solution for light-duty transport over short distances, both indoors and outdoors. Designed as a powerful alternative to manual pallet trucks, it enhances productivity and reduces physical strain on your workforce.
Perfect for:
- Warehouses and storage rooms
- Retail branches
- Loading and unloading trucks
- Onboard truck transport due to low dead weight
Key Features at a Glance
- Load Capacity: Up to 1,300 kg
- Fork Length: 1150 mm
- Drive & Lift: Fully electric operation
- Battery: Maintenance-free lithium-ion technology
- Design: Compact, lightweight, and highly maneuverable
- Battery Swap: Quick and tool-free battery change
- Charger: External charger included (230V socket compatible)
Benefits of Lithium-Ion Technology
The AME 13 is equipped with advanced lithium-ion battery technology, offering:
- Consistent performance throughout the workday
- Fast charging times and opportunity charging without memory effect
- Long service life for reduced total cost of ownership
- Optional replacement battery for extended operation
Ergonomic and User-Friendly Operation
- Multi-function tiller handle: Ergonomically designed for both left- and right-handed users
- Intuitive controls: Color-coded buttons and wear-resistant symbols
- Stable handling: Two support wheels and reinforced braking system for safe ramp use

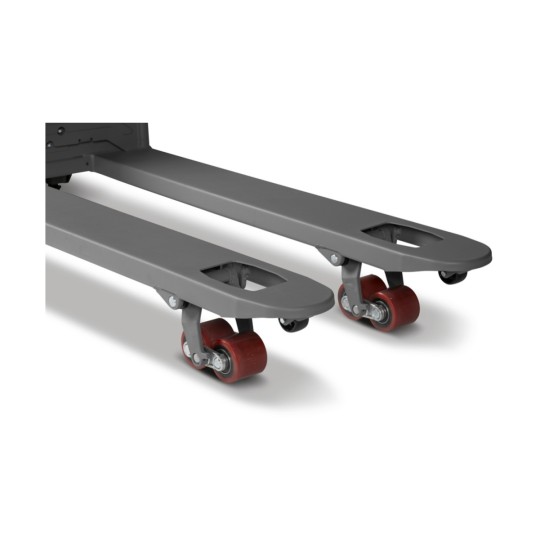

- Smooth operation: Tandem fork rollers and infeed rollers for easy pallet entry and exit
Built for Durability and Versatility
- Robust construction: High-quality materials for long-term reliability
- Weather-resistant electronics: Protected against dust and moisture for short-term outdoor use
- Compact design: Ideal for tight spaces and easy transport
Why Choose the Jungheinrich AME 13?
- Boost productivity with effortless pallet movement
- Reduce physical strain on employees
- Lower maintenance costs with a durable, battery-powered system
- Flexible use across various environments and applications
Ready to upgrade from manual to electric? The Jungheinrich AME 13 is your smart, cost-effective step into the world of electric pallet trucks.
Product Details
- Drive
- Electric
- Operator type
- Pedestrian
- Capacity (Q)
- 1300 kg
- Load centre distance (c)
- 600 mm
- Lift range
- 80 - 190 mm
- Lift (h3)
- 110 mm
- Height of tiller handle in drive position min./max. (h14)
- 635 / 1200 mm
- Face of forks length
- 473 mm
- Overall width (b1)
- 550 mm
- Fork length (l)
- 1150 mm
- Fork height (s)
- 45 mm
- Fork width (e)
- 160 mm
- Width across forks (b5)
- 550 mm
- Ground clearance
- 35 mm
- Drive motor, performance S2 60 min
- 0,65 kW
- Travel speed, laden/unladen
- 4,8 / 5 km/h
- Lift speed with/without load
- 0,03 / 0,03 m/s
- Max. gradeability laden/unladen
- 5 / 20 %
- Brake
- Electromagnetic
- Battery type
- Lithium-ion
- Number of batteries
- 1
- Battery voltage
- 48 V/per unit
- Battery capacity
- 20 Ah/per unit
- Battery charging time
- 3 h
- Battery weight
- 8,5 kg
- Charger
- External, included
- Steering wheel material
- Polyurethane (PU)
- Fork roller material
- Polyurethane (PU)
- Fork roller equipment
- Tandem
- Drive control type
- Impulse / DC
- Temperature range
- 5 - 40 °C
Accessories
To add an item to the cart, select the desired quantity.
Please select additional amount.
Please select additional amount.
Please select additional amount.
Please select additional amount.
Please select additional amount.
Please select additional amount.
Please select additional amount.
Please select additional amount.
Please select additional amount.
Starter
Jungheinrich AME 13, Li-ion, capacity 1300 kg
A cost-effective alternative to a manual forklift for even greater productivity
- Fork length 1150 mm
- Light, short and very agile, ideal for HGV transport
- Durable, maintenance-free Li-ion battery
