Electric pallet lifter Jungheinrich EJC 010i: Side

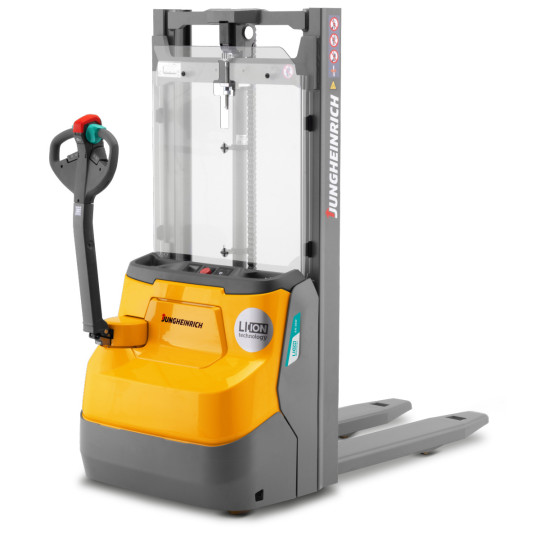

Electric pallet lifter Jungheinrich EJC 010i

Electric pallet lifter Jungheinrich EJC 010i: Charging status display, emergency disconnect switch, charger cable

Electric pallet lifter Jungheinrich EJC 010i: Charger cable

Electric pallet lifter Jungheinrich EJC 010i: Excellent visibility of the forks and load

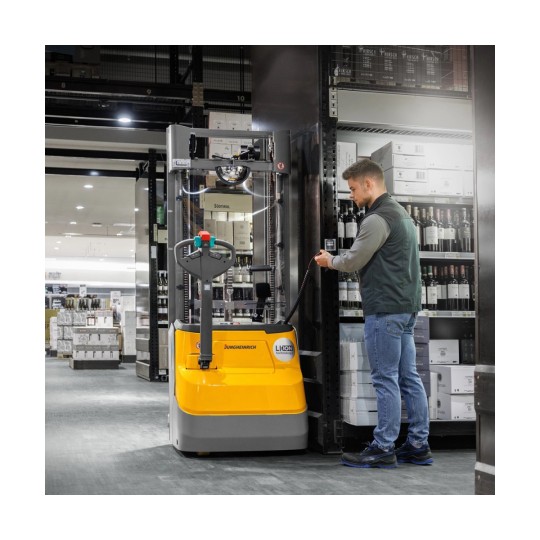

Electric pallet lifter Jungheinrich EJC 010i - Example of use

1000 kg

1150 mm

570 mm

Description

Jungheinrich EJC 010i: The compact electric pallet truck for occasional transport and stacking tasks

The Jungheinrich EJC 010i is the entry-level model in the range of pedestrian-operated electric pallet stackers. It represents an outstanding solution for small and medium-sized companies that occasionally need to transport and store light goods over short distances. It is ideal for environments or storage rooms with limited space and can handle transport and lifting tasks up to 1,000 kg as well as stacking tasks up to 3.60 m.

Key features

Pre-configured, quickly available basic version with lifting heights from 2.30 to 3.60 m.
Compact and manoeuvrable, therefore ideal for small or confined areas.
Low overall height and good visibility through the mast favours precise and easy handling of loads.
Proportional lifting and two-stage lowering for precise positioning.
Lifting and lowering possible with the tiller upright and simultaneous actuation of the crawl speed button.
Intuitive operation even for untrained personnel.

100% lithium-ion technology

Maintenance-free 50 Ah lithium-ion battery with a built-in charger.
Fast and intermediate charging during breaks or periods of downtime ensures high truck availability.
Up to three times the service life of lead-acid batteries.
Safe to use thanks to high-quality battery management system.

Excellent energy efficiency

Flexible charging anywhere at any standard socket.
Energy-saving function: Truck switches off automatically when not in use.
High voltage stability: Full power is always available.

Security and access control

Simplified manoeuvring in confined spaces thanks to crawl mode with raised tiller.
Body protection switch integrated in the tiller head protects the operator from collisions.
EasyAccess SoftKey: Access with a 4 digit code to activate the truck, protecting it against unauthorized use.
Warning horn: Included as a standard to increase safety during operation.

Ergonomic features and benefits

Low overall height: Improves the operator's visibility and increases safety during work.
Four-wheel chassis: Improves stability during the transport of loads.
Lifting and working tables: Offers ergonomic working height for various operations.

Advanced lifting and lowering features

EJC 010i is equipped with proportional hydraulics, which allows for precise and smooth lifting and gentle lowering of the load, which is particularly valuable when handling delicate items.

Additional functions

2" display with language-independent symbols: Provides clear information on truck and battery status.
Individually adjustable travel speed (3 programmes from 4 to 5.3 km/h).
Memory system for the last selected driving program.

Product Details

Drive: Electric
Operator type: Pedestrian
Capacity (Q): 1000 kg
Load centre distance (c): 600 mm
Net weight incl. battery: 601 kg (ZT 2300)
611 kg (ZT 2500)
630 kg (ZT 2900)
645 kg (ZT 3200)
664 kg (ZT 3600)
Mast Type: Two-stage / Duplex telescopic mast (ZT)
Lift (h3): 2300 mm (ZT 2300)
2500 mm (ZT 2500)
2900 mm (ZT 2900)
3200 mm (ZT 3200)
3600 mm (ZT 3600)
Free lift (h2): 100 mm
Lowered Fork Height (h13): 90 mm
Retracted mast height (h1): 1650 mm (ZT 2300)
1750 mm (ZT 2500)
1950 mm (ZT 2900)
2100 mm (ZT 3200)
2300 mm (ZT 3600)
Height of tiller handle in drive position min./max. (h14): 750 / 1260 mm
Overall length (l1): 1754 mm
Face of forks length: 604 mm
Overall width (b1): 800 mm
Fork length (l): 1150 mm
Fork height (s): 61 mm
Fork width (e): 178 mm
Width across forks (b5): 570 mm
Ground clearance: 24 mm
Turning radius (Wa): 1359 mm
Drive motor, performance S2 60 min: 1,0 kW
Travel speed, laden/unladen: 5,3 / 5,3 km/h
Creep speed button: Yes
Lift motor, performance with S3: 2,2 kW
Lift speed with/without load: 0,15 / 0,27 m/s
Lowering speed with/without load: 0,34 / 0,34 m/s
Max. gradeability laden/unladen: 6 / 14 %
Battery type: Lithium-ion
Battery voltage: 25,6 V/per unit
Battery capacity: 50 Ah/per unit
Charger: Integrated
Drive wheel material: Polyurethane (PU)
Fork roller equipment: Single
Access system: PIN code
Hour meter: Yes
Temperature range: 10 - 40 °C
Model: EJC 010i

Performance

Jungheinrich EJC 010i, capacity 1000 kg

Space-saving, easy to use and ideal for small jobs.

Pre-configured basic version with two-stage mast with lifting hights 2300 / 2500 / 2900 / 3200 / 3600 mm.
Proportional hydraulics for precise lifting and lowering.
Integrated maintenance-free lithium-ion battery with a built-in charger.

€8,450.00

Tax excluded

Reference: 59010511

Status: In stock (JH central warehouse)

Delivery time: In 1-3 weeks
