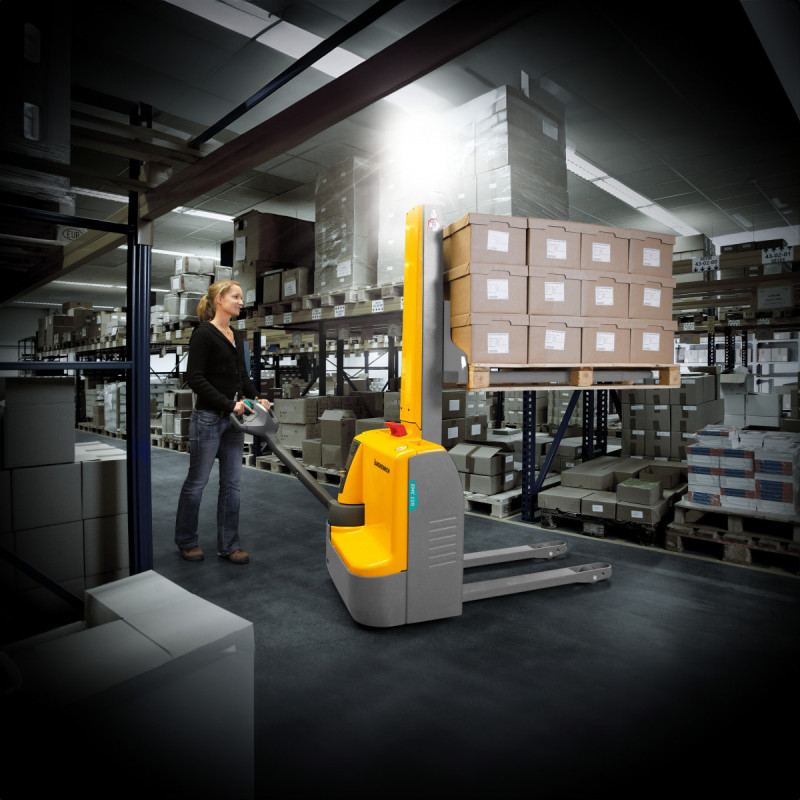

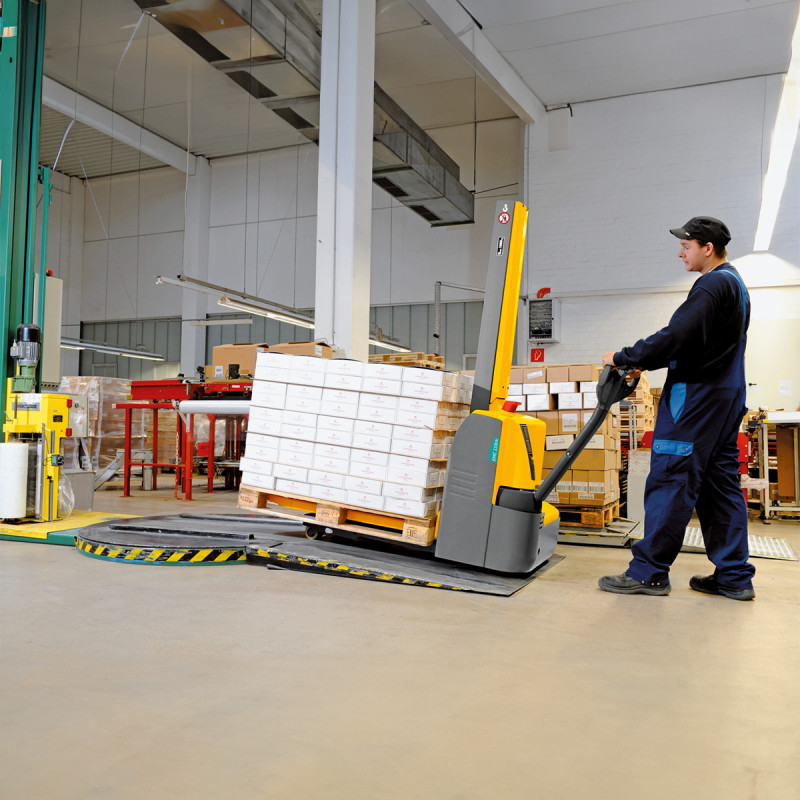

Electric stacker truck Jungheinrich EMC 110 - Example of use
Electric stacker truck Jungheinrich EMC 110 - Example of use
Electric stacker truck Jungheinrich EMC 110
Electric stacker truck Jungheinrich EMC 110 - Tiller
Electric stacker truck Jungheinrich EMC 110 - Charging status display
Electric stacker truck Jungheinrich EMC 110 - Multi-functional tiller handle
Electric stacker truck Jungheinrich EMC 110 - Charging
Electric stacker truck Jungheinrich EMC 110 - Example of use as lift table
Electric stacker truck Jungheinrich EMC 110 - Example of use
Electric stacker truck Jungheinrich EMC 110 - Example of use
1000 kg
1000 kg
1150 (E 2000)
1150 (E 2000)
570 mm
570 mm

Jungheinrich EMC 110 Electric Stacker Truck

Efficient. Compact. Ergonomic.

The EMC 110 is a high-performance electric stacker designed for easy handling in tight spaces such as lifts, mezzanines, and narrow aisles. With its compact dimensions, maintenance-free motor, and ergonomic controls, it’s ideal for lifting, stacking, and light-duty transport tasks. It can also function as a lift table or workbench, providing excellent versatility in daily operations.

Key Features

  • Load capacity: 1000 kg
  • Compact size: short headlength & low weight
  • Fully electric drive and lift motor
  • Forks – 185 x 56 x 1150 mm
  • On-board charger for any 230 V socket
  • Crawl speed mode for maneuvering in tight areas
  • Maintenance-free 24 V three-phase AC motor
  • Multifunction tiller head for intuitive control
  • Mono mast for clear load visibility

Drive
Electric
Operator type
Pedestrian
Capacity (Q)
1000 kg
Load centre distance (c)
600 mm
Lift (h3)
2000 mm (E 2000)
Retracted mast height (h1)
2430 mm (E 2000)
Extended mast height (h4)
2430 mm (E 2000)
Tiller height
821 / 1305 mm
Overall length (l1)
1685 mm
Face of forks length
535 mm
Fork length (l)
1150 (E 2000)
Fork height (s)
56 mm
Fork width (e)
185 mm
Width across forks (b5)
570 mm
Ground clearance
30 mm
Aisle width
1995 mm
Turning radius (Wa)
1378 mm
Drive motor, performance S2 60 min
0,5 kW
Travel speed, laden/unladen
4,2 / 5 km/h
Creep speed button
Yes
Lift motor, performance with S3
1,2 kW
Lift speed with/without load
0.09 / 0.12 m/s
Lowering speed with/without load
0,12 / 0,13 m/s
Max. gradeability laden/unladen
3,5 / 15 %
Brake
Generator
Battery type
Lead gel battery
Number of batteries
2
Battery voltage
12 V/per unit
Battery capacity
70 Ah/per unit
Charger
Integrated
Display
Discharge indicator
Drive control type
AC speed control

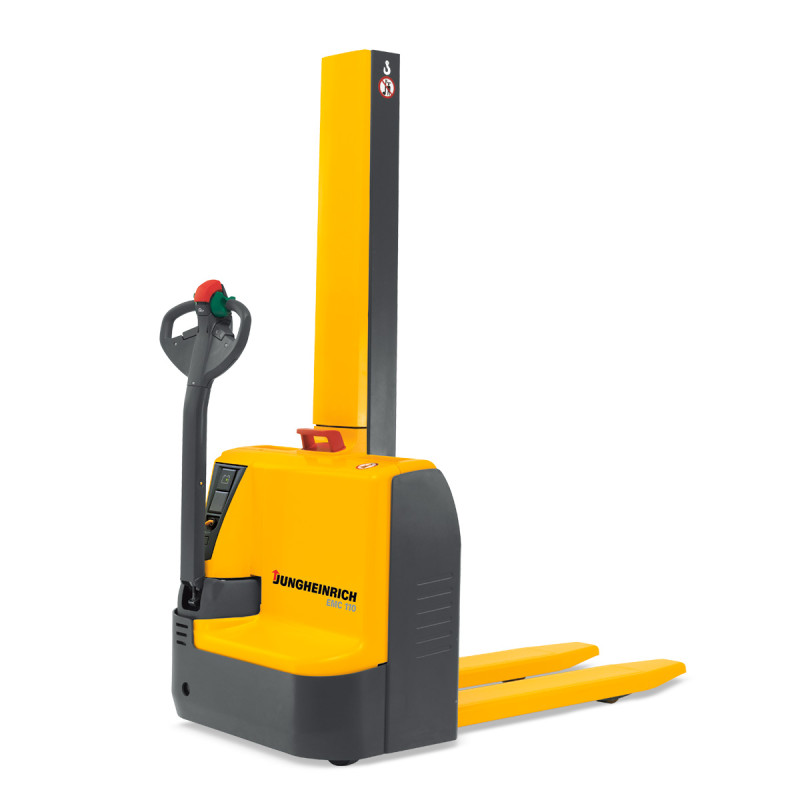

Jungheinrich EMC 110 electric stacker truck with mono mast

Full electric power in the tightest of spaces thanks to compact dimensions

  • Load capacity: 1000 kg
  • Compact size: short headlength & low weight
  • It can be used as a lift table or workbench
  • IN STOCK!
