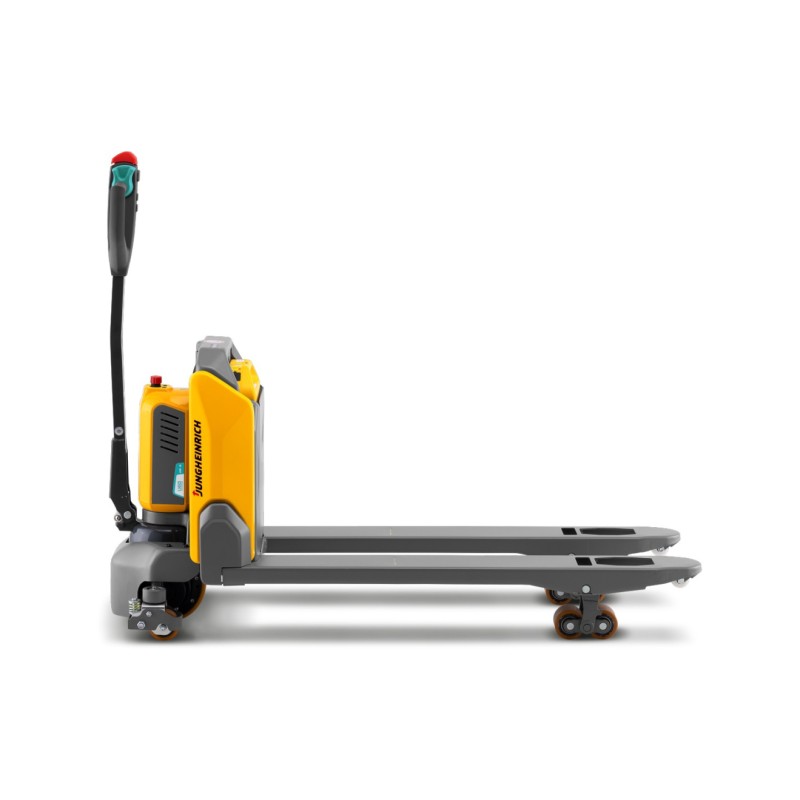

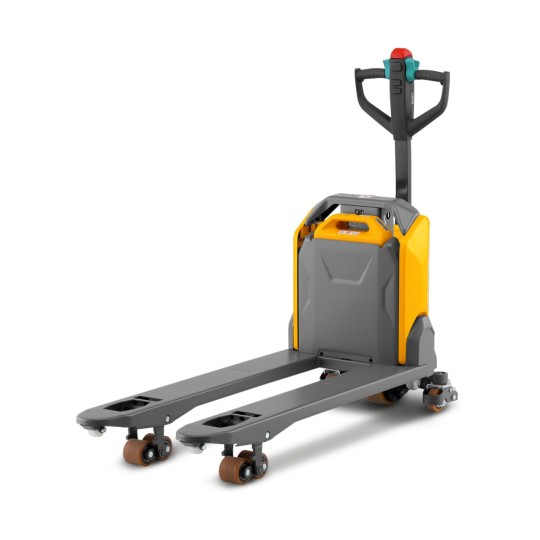

Electric pallet truck Jungheinrich AME 16 (capacity 1600 kg)
Electric pallet truck Jungheinrich AME 16 (capacity 1600 kg)
Electric pallet truck Jungheinrich AME 16 - Tandem load wheels + infeed rollers
Electric pallet truck Jungheinrich AME 16 - Drive unit protected against foot injuries + support wheels
Electric pallet truck Jungheinrich AME 16 - Support wheels
Electric pallet truck Jungheinrich AME 16 - Quick and easy battery replacement

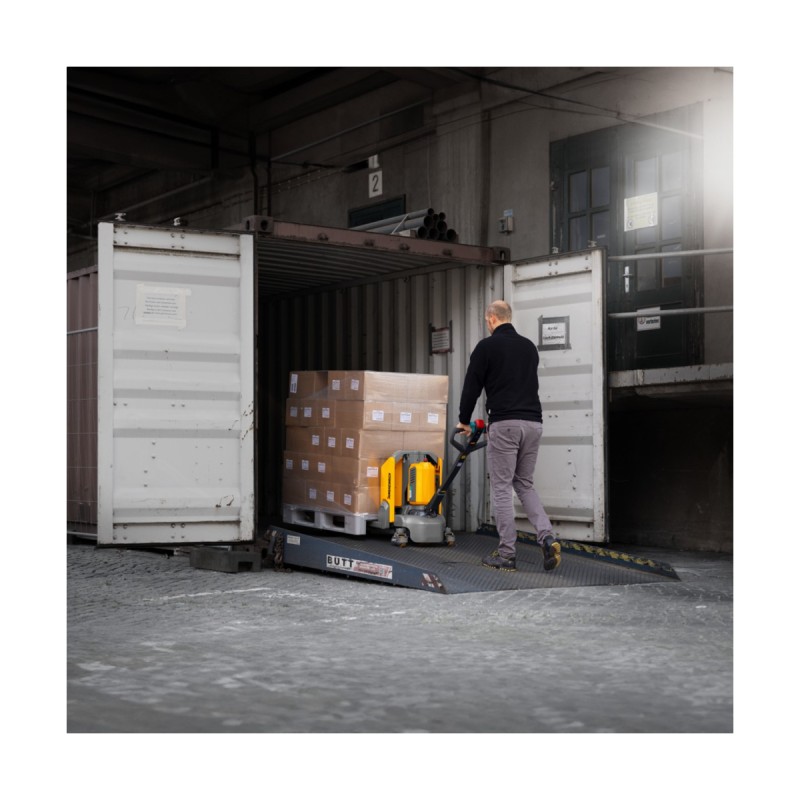

Electric pallet truck Jungheinrich AME 16 - Example of use
Electric pallet truck Jungheinrich AME 16 - Example of use
Electric pallet truck Jungheinrich AME 16 - Example of use
Electric pallet truck Jungheinrich AME 16 - Example of use
Electric pallet truck Jungheinrich AME 16 (capacity 1600 kg)
Electric pallet truck Jungheinrich AME 16 (capacity 1600 kg)
Electric pallet truck Jungheinrich AME 16 - Tandem load wheels + infeed rollers
Electric pallet truck Jungheinrich AME 16 - Drive unit protected against foot injuries + support wheels
Electric pallet truck Jungheinrich AME 16 - Support wheels
Electric pallet truck Jungheinrich AME 16 - Quick and easy battery replacement
Electric pallet truck Jungheinrich AME 16 - Example of use
Electric pallet truck Jungheinrich AME 16 - Example of use
Electric pallet truck Jungheinrich AME 16 - Example of use
Electric pallet truck Jungheinrich AME 16 - Example of use
1600 kg
1600 kg
1150 mm
1150 mm
1000 mm
1000 mm
540 mm
540 mm

Jungheinrich AME 16 Electric Pallet Truck – Lithium-Ion Power for Maximum Efficiency

Versatile, Ergonomic, and Built for Daily Use

The Jungheinrich AME 16 is a powerful and ergonomic electric pallet truck designed for efficient goods handling over short distances. With a fully electric drive, lift, and lower function, it handles loads of up to 1,600 kg effortlessly—boosting productivity and reducing physical strain on your team.

Ideal for:

  • Warehouses and logistics centers
  • Retail stores and branches
  • Loading and unloading trucks
  • Use in elevators, tail lifts, and confined spaces

Key Features at a Glance

  • Load Capacity: Up to 1,600 kg
  • Fork Lengths: Available in 2 sizes
  • Drive & Lift: Fully electric operation
  • Battery: 48V lithium-ion, maintenance-free
  • Access: Secure PIN code entry
  • Display: LCD with battery status, hours, and diagnostics
  • Safety: curveCONTROL, collision switch, and automatic braking
  • Stability: Lateral support rollers and reinforced forks
  • Mobility: Compact design, short headlength, and small turning radius
  • Battery Swap: Quick, tool-free, and lightweight (7 kg)

Designed for Tight Spaces and High Maneuverability

  • Compact dimensions and low weight make the AME 16 ideal for use in narrow aisles, elevators, and on trucks
  • Slow travel mode allows precise control with the tiller in vertical position
  • Long, low-set drawbar ensures safe distance and easy handling

Intelligent Control and Monitoring

  • Multifunction tiller handle: Operate all functions with either hand
  • LCD display: Real-time info on battery, hours, and slow mode
  • CAN bus diagnostics: Quick fault detection and maintenance alerts
  • PIN code access: Prevents unauthorized use

Advanced Lithium-Ion Technology

  • High performance with consistent power output
  • Short charging times and opportunity charging without memory effect
  • External charger included – compatible with standard 230V outlets
  • Optional replacement battery for extended operation
  • Tool-free battery change in seconds

Built for Safety and Durability

  • Electromagnetic brake with energy recovery
  • Automatic shut-off after 30 minutes of inactivity
  • Steel drive unit cover protects against foot injuries
  • Double-reinforced forks maintain shape under heavy loads
  • curveCONTROL reduces speed in corners for safer handling
  • Collision switch reverses direction on contact

Smooth and Quiet Operation

  • Polyurethane tandem rollers absorb floor irregularities
  • Rounded fork tips and protected entry rollers for easy pallet access
  • Fork marking at 800 mm ensures safe side entry of Euro pallets

Why Choose the AME 16?

  • Boost daily productivity with fully electric operation
  • Ensure ergonomic, fatigue-free handling for your team
  • Operate safely in tight, demanding environments
  • Enjoy long-term reliability with low maintenance costs
Drive
Electric
Operator type
Pedestrian
Capacity (Q)
1600 kg
Load centre distance (c)
600 mm
Net weight incl. battery
145 kg (forks 1000 mm)
149 kg
149 kg (forks 1150 mm)
Lift range
80 - 195 mm
Lift (h3)
115 mm
Height of tiller handle in drive position min./max. (h14)
780 / 1160 mm
Face of forks length
386 mm
Overall width (b1)
540 mm
Fork length (l)
1000 mm
1150 mm
Fork height (s)
47 mm
Fork width (e)
160 mm
Width across forks (b5)
540 mm
Ground clearance
33 mm
Drive motor, performance S2 60 min
0,75 kW
Travel speed, laden/unladen
4,8 / 5,2 m/s
Creep speed button
Yes
Lift speed with/without load
0,02 / 0,02 m/s
Lowering speed with/without load
0,04 / 0,03 m/s
Max. gradeability laden/unladen
8 / 16 %
Brake
Electromagnetic
Battery type
Lithium-ion
Number of batteries
1
Battery voltage
48 V
Battery capacity
20 Ah/per unit
Battery charging time
5 h
Battery weight
7,5 kg
Charger
External, included
Steering wheel material
Polyurethane (PU)
Fork roller material
Polyurethane (PU)
Fork roller equipment
Tandem
Drive control type
Impulse / DC
Access system
PIN code
Hour meter
Yes
Temperature range
5 - 40 °C

Accessories

To add an item to the cart, select the desired quantity.
LI-ION BATTERY for...
Status: In stock (JH central warehouse)
€1,000.00
Please select additional amount.
  • Starter
  • Jungheinrich AME 16, Li-ion, capacity 1600 kg

    Fully electric travel and lift function for efficient, effortless goods transport

    • Fully electric lifting and movement up to 1,600 kg
    • Available with fork lenghts 1000 and 1150 mm
    • Durable, maintenance-free Li-ion battery

    €2,800.00
    Tax excluded
    52348441
    Status: Out of stock

    Delivery time: In 6-8 weeks
