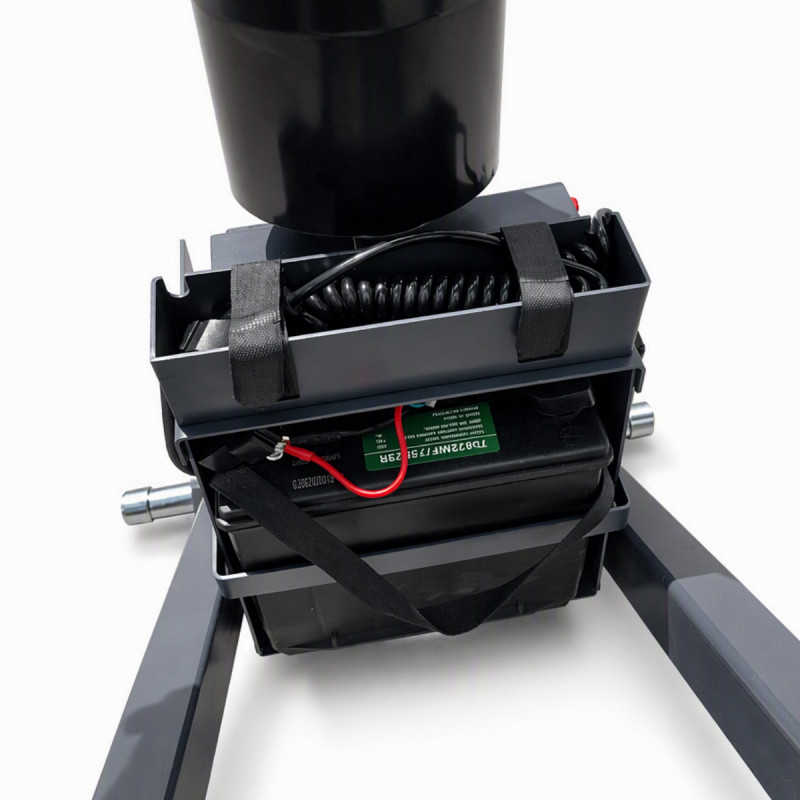

Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift - battery
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift - battery indicator
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift - tiller handle

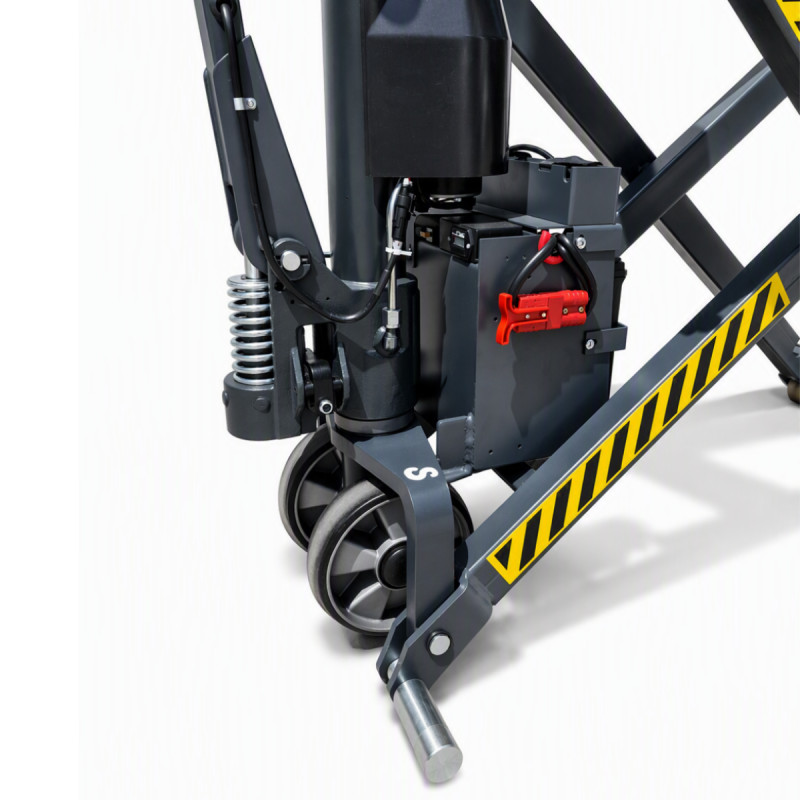

Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift - support feet
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift - ergonomic height
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift - ergonomic height
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift - battery
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift - battery indicator
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift - tiller handle
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift - support feet
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift - ergonomic height
Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift - ergonomic height
1000 kg
1000 kg
1170 mm
1170 mm

Description

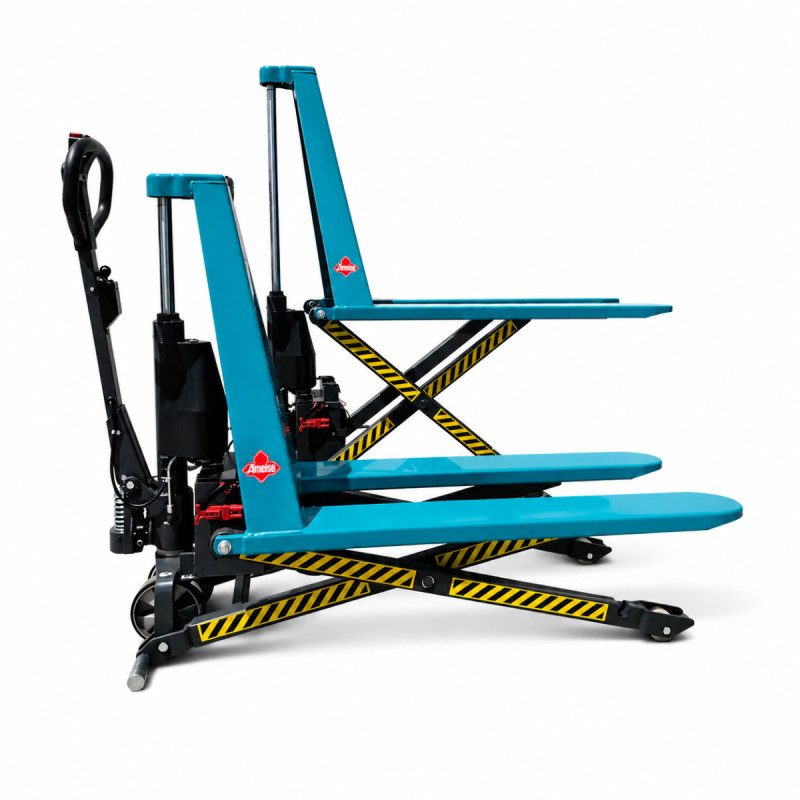

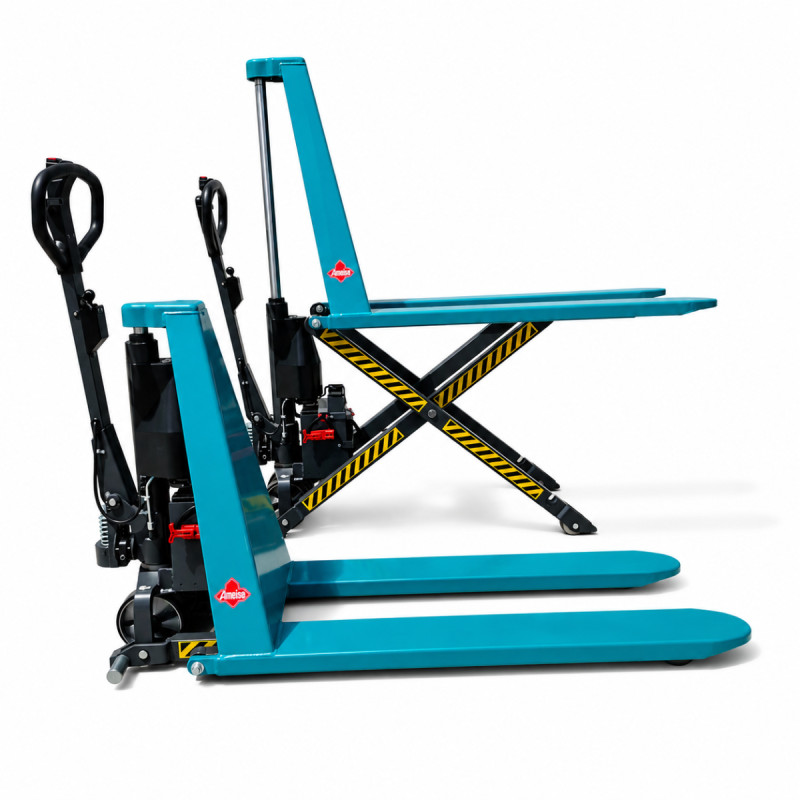

Ameise PTM 1.0 Scissor Lift Pallet Truck

Ergonomic and efficient lifting: all at the push of a button

The Ameise PTM 1.0 electro-hydraulic scissor lift pallet truck combines Ameise's trusted build quality with electric lifting power, making warehouse work faster, safer, and easier. Designed for lifting, moving, and provisioning, it doubles as a lift table or mobile workbench - ideal for production lines and logistics operations.

With a powerful 0.58 kW motor, you can lift to 1,000 kg effortlessly and adjust the height up to 800 mm for optimal ergonomics. The manual quick-lift function is available when electricity isn’t, giving you full flexibility.

Main features at a glance

  • Electro-hydraulic lift with 0.58 kW motor: smooth and effortless lifting
  • Manual quick-lift backup: functional even without power
  • Ergonomic work height: max lift height of 800 mm
  • Durable design: welded steel frame with torsion-resistant forks
  • Stable and safe: automatic support feet engage above 400 mm
  • Onboard battery charger
  • 12 V / 60 Ah maintenance-free battery
  • Precision lowering: controlled lowering of sensitive loads
  • Quiet and smooth travel: PU steering castors and nylon fork rollers
  • Overload protection valve: prevents damage to the hydraulic system

Improve your workflow and reduce physical strain with the Ameise PTM 1.0 electro-hydraulic scissor lift pallet truck.

Type
Hand pallet truck with scissor lift
Drive
Manual
Operator type
Manual
Capacity (Q)
1000 kg
Load centre distance (c)
600 mm
Net weight
152 kg
Lift range
85 - 800 mm
Lift type
Electric
Tiller height
1254 mm
Overall length (l1)
1662 mm
Overall width (b1)
540 mm
Fork length (l)
1170 mm
Fork width (e)
160 mm
Ground clearance
20 mm
Steering wheel material
Polyurethane (PU)
Steering wheel diameter
180 mm
Steering wheel width
50 mm
Fork roller material
Nylon
Fork roller diameter
75 mm
Fork roller width
50 mm
Fork roller equipment
Single
Handle fittings
Rubber sheath
Pallet truck material
Steel
  • Performance

    • Ameise PTM 1.0, capacity 1000 kg, with electric scissor lift

    Ergonomic lifting and transport up to 1,000 kg with ease

    • Electric lift up to 800 mm
    • 12 V maintenance-free battery with onboard charger
    • Lift and move up to 1,000 kg with a robust hydraulic system

    €1,660.00
    Tax excluded
    197328-77010142
    Status: In stock (JH central warehouse)

    Delivery: In 1-3 weeks
