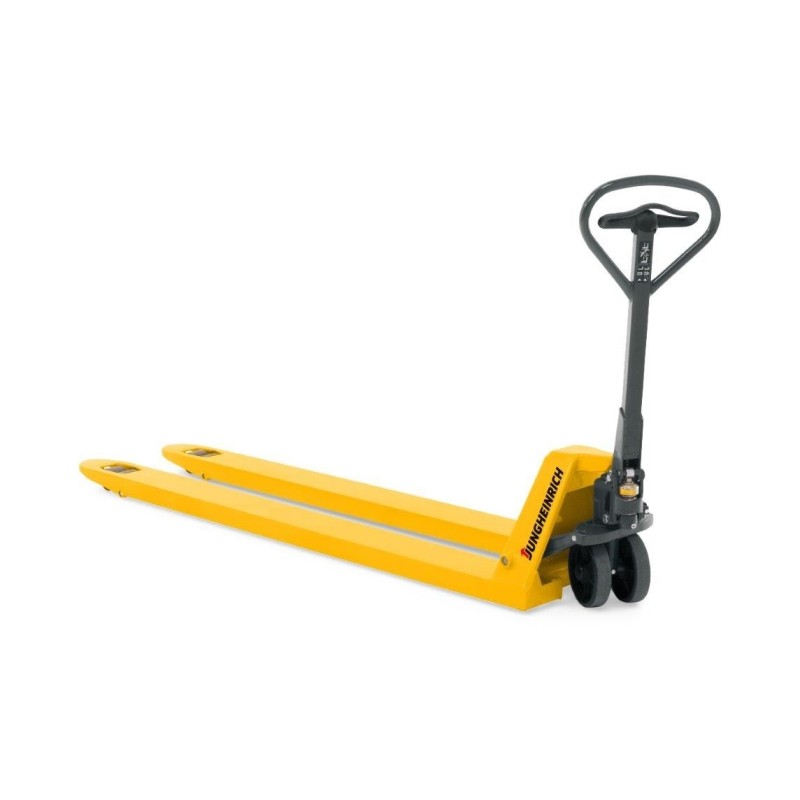

Hand pallet truck Jungheinrich AM 30 (3t capacity) with 2100 mm forks

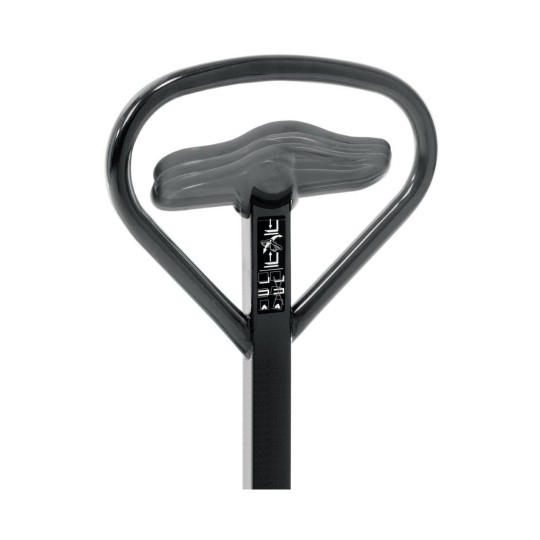

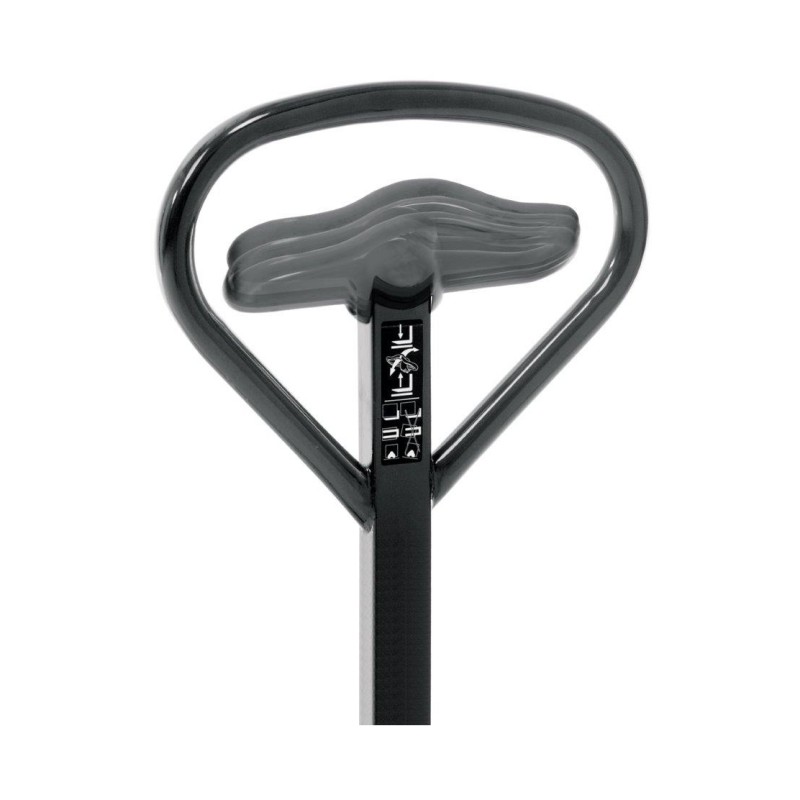

Hand pallet truck Jungheinrich AM 30 - Ergonomic tiller handle

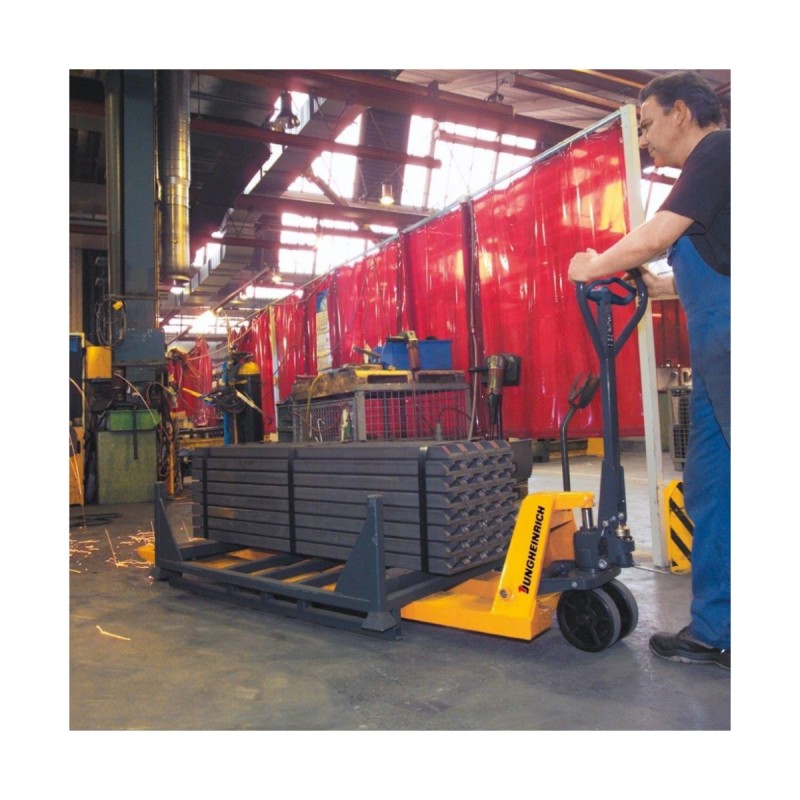

Hand pallet truck Jungheinrich AM 30 - Example of use

3000 kg

2100 mm

550 mm

Description

The Jungheinrich AM 30 hand pallet truck with quick lift is a reliable aid for transporting goods weighing up to 3000 kg. The robust construction is maintenance free thanks to the high-quality pump hydraulics and lifetime lubrication of all joints.

Hard-wearing heavy-duty pallet truck with a capacity of 3000 kg
Time-saving rapid lift for loads of up to 120 kg
Ergonomic tiller suitable for both right and left-handed users
Flexible steering angle of up to 105° for excellent manoeuvrability

Highly robust and maintenance-free – the heavy-duty hand pallet truck with quick lift

When moving heavy goods weighing up to 3000 kg around your warehouse, the Jungheinrich AM 30 hand pallet truck offers reliable stability combined with excellent operating characteristics. In the case of lighter loads, you can use the quick lift function to lift pallets off the ground with just three pumps of the tiller. The full lift height is reached after five pumps.

The pallet truck offers excellent comfort, even in narrow aisles or on winding routes. A 105° steering angle on both sides ensures maximum manoeuvrability at all times. The pallet truck is controlled using an ergonomic tiller that is equally well suited to right and left-handed users.

Thanks to the sophisticated pump hydraulics, even the heaviest of pallets can be lifted with minimal effort. Protected entry rollers and rounded fork tips ensure that picking up the goods is a very straightforward process. Hard steel construction, a powder-coated surface, chromated wheel bushings and joints as well as a welded tiller mount all combined to deliver a product with maximum durability. Both the steering castors and the tandem fork rollers are made from hard-wearing, abrasion-resistant polyurethane. We offer the heavy-duty hand pallet truck with different fork lengths – in our web shop you can choose between 2100 and 1220 mm.

Transport your heavy goods with maximum comfort and safety by ordering the Jungheinrich AM 30 hand pallet truck with quick lift and 3000 kg capacity from our shop.

Product Details

Type: Hand pallet truck
Drive: Manual
Route: Short distance
Operator type: Pedestrian
Capacity (Q): 3000 kg
Load centre distance (c): 1050 mm
Net weight: 146,2 kg
Lift range: 85 - 205 mm
Lift (h3): 120 mm
Pump strokes to max. lift height: 12
Pump strokes to lift pallet: 7
Rapid lift: Yes
Lift height per pump stroke: 10 mm
Tiller height: 1224 mm
Overall length (l1): 2483 mm
Face of forks length: 383 mm
Overall width (b1): 550 mm
Fork length (l): 2100 mm
Fork height (s): 63 mm
Fork width (e): 160 mm
Width across forks (b5): 550 mm
Ground clearance: 36 mm
Aisle width: 2683 mm
Turning radius (Wa): 2184 mm
Lowering speed with/without load: 0,09 / 0,05 m/s
Steering wheel material: Polyurethane (PU)
Steering wheel diameter: 200 mm
Steering wheel width: 50 mm
Fork roller material: Polyurethane (PU)
Fork roller diameter: 80 mm
Fork roller width: 70 mm
Fork roller equipment: Tandem
Infeed rollers: Yes
Handle fittings: Steel
Pallet truck material: Steel

Professional

Jungheinrich AM 30, quick lift, fork length 2100 mm

Name: Jungheinrich AM 30, quick lift, fork length 2100 mm
Brand: Jungheinrich
SKU: 50437763-77010038
Price: 2200 EUR
Availability: InStock
