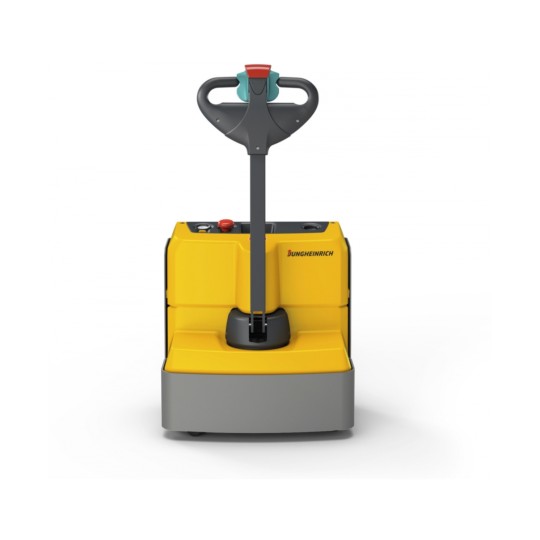

Jungheinrich EJE M15 Li-ion (capacity 1500 kg) - Electric pallet truck with Li-ion battery
Jungheinrich EJE M15 Li-ion (capacity 1500 kg) - Electric pallet truck with Li-ion battery
Jungheinrich EJE M15 Li-ion - Sprung support rollers for optimal stability
Jungheinrich EJE M15 Li-ion - Ergonomic tiller handle
Jungheinrich EJE M15 Li-ion - Control instruments
Jungheinrich EJE M15 Li-ion - Onboard charger
Jungheinrich EJE M15 Li-ion (capacity 1500 kg) - Electric pallet truck with Li-ion battery
Jungheinrich EJE M15 Li-ion (capacity 1500 kg) - Electric pallet truck with Li-ion battery
Jungheinrich EJE M15 Li-ion (capacity 1500 kg) - Electric pallet truck with Li-ion battery
Jungheinrich EJE M15 Li-ion - Sprung support rollers for optimal stability
Jungheinrich EJE M15 Li-ion - Ergonomic tiller handle
Jungheinrich EJE M15 Li-ion - Control instruments
Jungheinrich EJE M15 Li-ion - Onboard charger
Jungheinrich EJE M15 Li-ion (capacity 1500 kg) - Electric pallet truck with Li-ion battery
1500 kg
1500 kg
1150 mm
1150 mm
540 mm
540 mm

Description

The EJE M15 is a cost-effective entry-level model in the Jungheinrich electric pallet truck range. The electric drive assists you with the everyday transportation of pallets; Ideal for small and medium-sized companies, as a hand pallet truck replacement or to supplement your truck fleet. It is designed for light-duty operations; the maximum continuous operation time is 2 hours.

  • Extremely agile thanks to compact dimensions
  • Support wheels for outstanding travel and cornering stability
  • Maintenance-free Li-ion battery with on-board charger
  • Entry rollers for easy pallet insertion

The Jungheinrich EJE M15 electric pedestrian pallet truck offers an optimum price/performance ratio for your in-house goods traffic

The EJE M15 was developed specifically for use in small and medium-sized businesses with occasional need for a goods transport solution. The 1 kW drive motor assists you in transporting pallets and goods weighing up to 1500 kg over short distances.

The ergonomic tiller handle can be operated with either hand for convenient access to all functions. All important control instruments, such as the battery charge indicator, hour meter, emergency disconnect and key are positioned centrally in your direct field of view. The low-mounted tiller reduces the amount of effort required for steering.

Protection is provided by the complete panelling of the truck housing. The low ground clearance of just 35 mm greatly reduces the risk of foot injuries.

Thanks to its compact design and short headlength of just 435 mm, the EJE M15 is extremely agile and can be used safely in even the tightest of spaces. You retain an optimum view of the fork tips at all times. Two sprung support rollers ensure safe travel with reliable stability in corners.

The maintenance-free Li-ion battery, in combination with brushelss DC motor, allows you to reduce your operating costs and maximise the speed and cost efficiency of your stock turnover. The 1 kW drive motor delivers pleasantly swift acceleration and excellent handling.

The truck switches off automatically when not used for 30 minutes. The maintenance-free lithium-ion battery sets itself apart through its sustained performance, quick charging times and extended service life. There is also no need for time-consuming battery water replenishment.  In combination with the on-board charger maintenance-free Li-ion battery ensures utmost flexibility and can be charged simply via any 230 V socket. Short, few-minute intermediate charges are not only allowed, but even desirable.

Check out short video on how to use Electric Pedestrian Pallet Trucks Jungheinrich EJE & EJC M Series.

Enjoy a cost-effective entry into the Jungheinrich electric pallet truck range by purchasing the EJE M15 from our web shop.

Operating manuals can be dowloaded here.

Model
Jungheinrich EJE M15
Drive
Electric
Operator type
Pedestrian
Capacity (Q)
1500 kg
Load centre distance (c)
600 mm
Net weight incl. battery
219 kg
Lift range
85 - 205 mm
Lift (h3)
120 mm
Lift type
Electric
Overall length (l1)
1585 mm
Overall width (b1)
650 mm
Fork length (l)
1150 mm
Fork height (s)
55 mm
Fork width (e)
172 mm
Width across forks (b5)
540 mm
Ground clearance
35 mm
Aisle width
1643 mm (pallet 1000x1200 mm sideways)
1843 mm (pallet 800x1200 mm length)
Turning radius (Wa)
1357 mm
Drive motor, performance S2 60 min
1,0 kW
Travel speed, laden/unladen
5 / 5 km/h
Lift motor, performance with S3
1,2 kW
Lift speed with/without load
0,05 / 0,06 m/s
Lowering speed with/without load
0,04 / 0,02 m/s
Gradeability
10%
Max. gradeability laden/unladen
6 / 16 %
Brake
Electric
Battery type
Lithium-ion
Battery voltage
24 V/per unit
Battery capacity
50 Ah/per unit
Battery weight
15 kg
Drive wheel material
Thermoplastic elastomers based on urethane (TPU)
Drive wheel diameter
210 mm
Drive wheel width
70 mm
Fork roller material
Polyurethane (PU)
Fork roller diameter
80 mm
Fork roller width
70 mm
Fork roller equipment
Tandem
Additional wheel width
40 mm
Spare wheel diameter
80 mm
Charger
Integrated
  • Performance
  • Jungheinrich EJE M15 Li-ion, capacity 1500 kg

    Electric drive makes light work of heavy loads

    • 3500Extremely agile thanks to compact dimensions
    • Support wheels for outstanding stability
    • Li-ion battery

    €3,500.00
    Tax excluded
    51984687
    Status: In stock (JH central warehouse)

    Delivery: In 1-3 weeks
