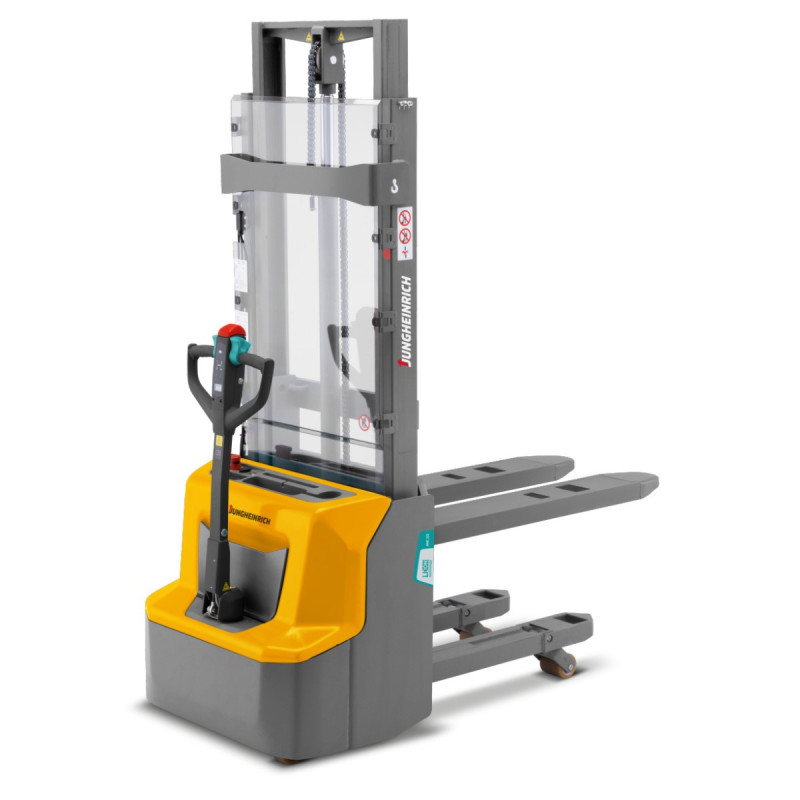

The AMC 12z electric stacker truck is Jungheinrich's entry-level model in the electric stacker truck segment with lithium-ion technology. The electric stacker truck with 1,200 kg load capacity has a two-stage telescopic mast and is available in 2 lift heights ranging up to 3,600 mm. This tool assists you in light-duty applications involving internal pallet handling across short distances. Thanks to the initial lift, the Jungheinrich AMC 12z electric stacker truck is also ideal for use on uneven floors and ramps. The maintenance-free lithium-ion battery with integrated charger impresses with its constant performance levels, short charging times and long service life, thereby ensuring maximum availability and flexibility.

• 1,200 kg load capacity
• 2 lift heights available (2,900, 3,600 mm)
• Initial lift for increased ground clearance on loading ramps
• Maintenance-free lithium-ion battery
• On-board charger for flexible application
• Compact design for confined warehouse environments
• Slim mast profiles for optimum visibility
• curveCONTROL ensures safe cornering
• PIN code access and slow travel button
• Visual support for reading the residual load capacity
• USB interfaces for charging external devices
• Fork marking for transverse pallet pick-up

With initial lift for increased flexibility when used on ramps and uneven floors

With the AMC 12z, Jungheinrich offers an effective entry point into its range of electric stacker trucks with lithium-ion technology. The electric stacker truck was designed for light-duty in-house use, making it the perfect entry-level solution for small and medium-sized companies. Be it for transporting loads weighing up to 1,200 kg over short distances, for efficient storage and removal of pallets at heights of up to 3,600 mm or as a mobile work bench for simple and ergonomic order picking – the versatile AMC 12z is the perfect tool for the job. The initial lift offers even more flexible application options by raising the support arms. The additional support arm lift provides increased ground clearance so that uneven floors, thresholds, ramps, bridge plates and loading bridges can be easily negotiated. The electric stacker truck is equipped with a two-stage telescopic mast and is available in 2 lift heights.

With the AMC 12z, you benefit from all the advantages of lithium-ion technology: The maintenance-free lithium-ion battery impresses with its constant performance levels and long service life. Short charging times and, in particular, fast intermediate charging without memory effect ensure optimum availability of the electric stacker truck. The integrated charger offers maximum flexibility by allowing you to easily recharge the truck at any 230-V socket. A display keeps you up to date on the charging progress.

The lithium-ion forklift truck offers ergonomic ease of use. You control all electric travel, lifting and lowering functions via the intuitive multifunction tiller handle, which can be operated with either hand. The collision safety switch ensures effective collision protection. The display integrated on the tiller head keeps you up to date on all relevant truck status information, such as the battery charge level. PIN code access provides reliable protection against unauthorised use. The emergency disconnect switch and integrated charger are positioned centrally on the chassis along with a storage compartment and USB interfaces for charging external devices. Due to its compact design, small turning circle and low net weight, the AMC 12z is also ideal for use in confined spaces such as lifts and mezzanines. And if things get really tight, you can manoeuvre the electric stacker truck with maximum safety and precision in slow travel mode with the tiller in an upright position.

The AMC 12z creates the perfect conditions for safe working. Thanks to the slim mast profiles and compact design with low chassis, you always have optimum visibility through the mast, thus providing you with a clear view of the fork tips and the transported load. The Plexiglas panel in front of the mast prevents you from reaching through accidentally. The drive unit is fully enclosed in steel which, along with the ground clearance of just 24 mm, ensures effective protection against foot injuries. Safety is further enhanced by the curveCONTROL function, which automatically reduces the travel speed when cornering. A coloured marking attached to the mast provides visual support when reading the change in residual capacity in relation to the lift height, thereby preventing incorrect operation. The fork markings ensure optimum positioning for transverse pallet pick-up.
