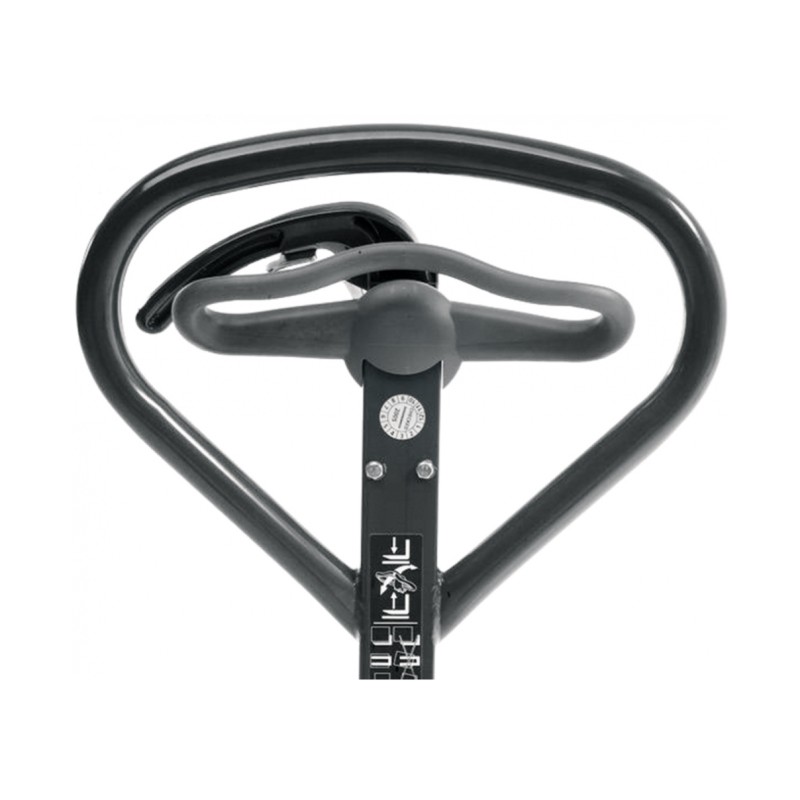

Hand pallet truck Jungheinrich AM 22 - Ergonomic tiller handle
Hand pallet truck Jungheinrich AM 22 - Travel and parking brake
Hand pallet truck Jungheinrich AM 22 - Maintenance free hydraulic system
Hand pallet truck Jungheinrich AM 22 - Example of use
Hand pallet truck Jungheinrich AM 22 with 950 mm forks
Hand pallet truck Jungheinrich AM 22 - Rounded fork tips
Hand pallet truck Jungheinrich AM 22 - Ergonomic tiller handle
Hand pallet truck Jungheinrich AM 22 - Travel and parking brake
Hand pallet truck Jungheinrich AM 22 - Maintenance free hydraulic system
Hand pallet truck Jungheinrich AM 22 - Example of use
2200 kg
2200 kg
950 mm
950 mm
520 mm
520 mm

Description

The Jungheinrich AM 22 hand pallet truck with short forks is a robust and reliable premium product for daily pallet handling in confined spaces. Be it on lorries or in narrow aisles – the pallet truck with short forks is always there to help when things get tight.

  • Ideal for transport in trucks
  • High manoeuvrability thanks to short fork length
  • Ergonomic control element
  • Durability thanks to robust materials and sturdy construction
  • Maintenance-free design with all connections lubricated for life

AM 22 - the Jungheinrich classic with short forks for special applications

The Jungheinrich AM 22 hand pallet truck with short forks and a capacity of 2200 kg is a high quality solution for working in small spaces. Its short fork length makes it ideal for transport in trucks or vans. Thanks to its small turning circle and short fork length, it offers impressive agility and manoeuvrability in narrow aisles. It can also be used to transport special pallets.

The patented, ergonomic Jungheinrich operating concept allows the tiller to be controlled from any position and is equally well suited to right and left-handed users. All functions can be easily reached with one hand. Thanks to the special lowering valve, sensitive loads can be set down with utmost control and precision.

The hand pallet truck does not require any servicing as the connections are lubricated for life and the pump hydraulics are maintenance-free. The outstanding stability and durability of the product is ensured by heavy-duty steel, a sophisticated design and a welded tiller mount. The entry rollers and rounded fork tips facilitate insertion and retraction from the pallet.

The Jungheinrich AM 22 hand pallet truck with a capacity of 2200 kg is in our web shop offered in short fork lengths 795 and 950 mm. Depending on the ground conditions and specific application, you can choose between a range of roller materials. You can also opt for single or tandem fork rollers.

Durable, reliable and proven in continuous daily use - the Jungheinrich AM 22 hand pallet truck with short forks and a capacity of 2200 kg is the ideal partner for your everyday pallet transport – even when things get tight. Order the hand pallet truck from our web shop in your chosen configuration. If you don’t find a suitable configuration, please get in contact with us.

Type
Hand pallet truck
Drive
Manual
Route
Short distance
Operator type
Manual
Capacity (Q)
2200 kg
Load centre distance (c)
500 mm
Net weight
59 kg / 59,5 kg
Lift range
83 - 205 mm
Lift (h3)
122 mm
Pump strokes to max. lift height
12
Pump strokes to lift pallet
7
Lift height per pump stroke
10 mm
Tiller height
1234 mm
Overall length (l1)
1320 mm
Face of forks length
373 mm
Overall width (b1)
520 mm
Fork length (l)
950 mm
Fork height (s)
53 mm
Fork width (e)
150 mm
Width across forks (b5)
520 mm
Ground clearance
30 mm
Aisle width
1784 mm
Turning radius (Wa)
1074 mm
Lowering speed with/without load
0,09 / 0,02 m/s
Steering wheel material
Solid Rubber / Polyurethane (PU)
Steering wheel diameter
170 mm
Steering wheel width
50 mm
Fork roller material
Polyurethane (PU)
Fork roller diameter
82 mm
Fork roller width
96 mm (single) / 62 (tandem)
Fork roller equipment
Single / Tandem
Infeed rollers
Yes
Handle fittings
Steel
Pallet truck material
Steel
  • Professional
  • Jungheinrich AM 22, capacity 2200 kg, fork length 950 mm

    Reliable Jungheinrich quality - for pallet handling in tight spaces

    • Ideal for transport in trucks
    • High manoeuvrability thanks to short fork length
    • Ergonomic control element

    €650.00
    Tax excluded
    51078151-77010012
    Status: Out of stock

    Delivery time: In 7-9 weeks
