2200 kg
2200 kg
1150 mm
1150 mm
540 mm
540 mm

Description

With the Jungheinrich AMW 22p weighing scale pallet truck with comfort display, you benefit from a highly functional and professional weighing system that can handle all manner of applications. In addition to the functions of the basic display, the AMW 22p also features, among other things, an automatic multi-range display with different measuring ranges as well as an easily removal battery change module including charger. You also benefit from all the features of the classic AM 22 with 2,200 kg capacity and quick lift (up to 120 kg).

  • 0 – 2200 kg measuring range
  • Automatic multi-range display: 0,2-200 kg, 0,5-500 kg, 1-2200 kg
  • Max. 0,1% deviation from measured weight
  • Tare function, totals memory, number of weighing operations
  • Automatic zero correction, date and time function
  • Plug-in battery change module including charger

Professional premium weighing system with a multitude of intelligent weighing functions

The Jungheinrich AMW 22p weighing scale pallet truck provides you with a professional weighing system suitable for all manner of applications thanks to a multitude of intelligent functions. With its convenient multi-range display, outstanding weighing accuracy (min. 99.9% of the measured weight) and sophisticated battery change module, the AMW 22p is a device of the highest calibre.

The weighing cells are positioned at the four end points of the forks to ensure highly accurate weight measurement – even on inclines of up to 2 degrees. As well as all functions of the basic display, the AMW 22p offers a date and time function as well as an automatic multi-range display with different measurement intervals: 0,2 - 200 kg, 0,5 - 500 kg, 1 – 2200 kg.

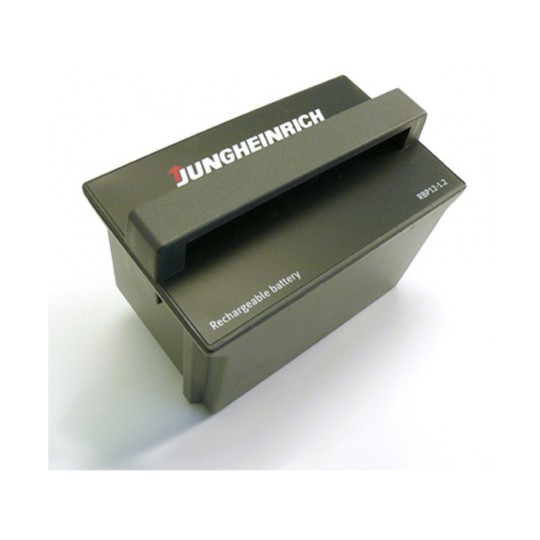

The plug-in battery change module (12 V / 1,2 Ah) with charger can be easily recharged at any 230 V socket. The battery life is approx. 60 hours. The scales switch off automatically when not used for 30 minutes. The electronics and display feature IP 65 protection against moisture and dust.

You benefit from all the equipment features of the classic AM 22. This includes the ergonomic, user-friendly control element. The special lowering valve allows sensitive loads to be set down with utmost control and precision. Thanks to the standard quick lift function (up to 120 kg), Euro pallets can be lifted clear of the ground with just three pump strokes. The maximum lift height is reached after five strokes. This saves you both time and effort.

The AMW 22p weighing scale pallet truck with 2,200 kg capacity and comfort display is available with different wheel configurations. Depending on the ground conditions and specific application, you can choose between a range of tyre materials. You can also opt for single or tandem fork rollers.

Depending on your requirements, you can equip the AMW 22p with:

  • Optional special functions
  • Calibrated versions according to class III (EU type approval no. T2782)**
  • Additional battery change module
  • Integrated printer
  • Special fork dimensions
  • Travel and parking brake, foot brake
  • Antistatic steering castor
  • Finer multi-range display: 0.1 – 200 kg, 0.2 – 400 kg, 0.5 – 2,000 kg

** Please note that calibration at a later date is not possible.

For information about all optional equipment please contact us at: info@jungheinrich-profishop.si.

Type
Hand pallet truck with weighing scale
Drive
Manual
Route
Short distance
Operator type
Manual
Capacity (Q)
2200 kg
Load centre distance (c)
600 mm
Net weight
105 kg / 106 kg
Lift range
86 - 208 mm
Lift (h3)
122 mm
Pump strokes to max. lift height
5/12
Pump strokes to lift pallet
3/7
Rapid lift
Yes
Lift height per pump stroke
25/10 mm
Tiller height
1234 mm
Overall length (l1)
1546 mm
Face of forks length
396 mm
Overall width (b1)
540 mm
Fork length (l)
1150 mm
Fork height (s)
62 mm
Fork width (e)
170 mm
Width across forks (b5)
540 mm
Ground clearance
24 mm
Aisle width
1813 mm
Turning radius (Wa)
1303 mm
Lowering speed with/without load
0,09 / 0,02 m/s
Weighting range
200 kg / 500 kg / 2200 kg
Measuring tolerance
0,1 %
Scale type
Digital
Power supply (scale)
Battery
Zero adjustment via keyboard
Yes
Calibrated design
No
Battery voltage
12 V/per unit
Battery capacity
1,2 Ah/per unit
Charger
External, included
Steering wheel material
Solid Rubber / Polyurethane (PU)
Steering wheel diameter
170 mm
Steering wheel width
50 mm
Fork roller material
Polyurethane (PU)
Fork roller diameter
82 mm
Fork roller width
96 mm
Fork roller equipment
Single / Tandem
Infeed rollers
Yes
Automatic shut-off without insert
30 min
Handle fittings
Steel
IP protection type display
IP 65
IP protection type measuring cells
IP 65
Pallet truck material
Steel
  • Professional
  • Jungheinrich AMW 22p, capacity 2200 kg, with professional weighing scale

    Functional and professional weighing technology with premium Jungheinrich quality

    • 0 – 2200 kg measuring range
    • Max. 0,1% deviation from measuring range
    • Plug-in battery change module including external charger

    €3,400.00
    Tax excluded
    51062200-77010108
    Status: In stock (JH central warehouse)

    Delivery time: In 1-3 weeks
