Hand pallet truck Jungheinrich AMX 10 with manual scissor lift and support feet
Scissor lift hand pallet truck Jungheinrich AMX 10 - Can be used also as lift table, provisioning table or workbench
Scissor lift hand pallet truck Jungheinrich AMX 10 - Example of use in shop
Scissor lift hand pallet truck Jungheinrich AMX 10 - Example of use in printing house
Hand pallet truck Jungheinrich AMX 10 with manual scissor lift and support feet
Scissor lift hand pallet truck Jungheinrich AMX 10 - Can be used also as lift table, provisioning table or workbench
Scissor lift hand pallet truck Jungheinrich AMX 10 - Example of use in shop
Scissor lift hand pallet truck Jungheinrich AMX 10 - Example of use in printing house
1000 kg
1000 kg
1150 mm
1150 mm
560 mm
560 mm

Description

The AMX 10 scissor lift pallet truck delivers premium Jungheinrich quality in a highly versatile package. You can use it as a hand pallet truck, lift table, provisioning table or workbench.

  • Flexible application, can also be used as a lift table or workbench
  • Automatic quick lift up to 120 kg
  • 800 mm lift height for ergonomic working
  • Ergonomic tiller handle that can be operated with either hand
  • Available with electric lift

Just a few tiller strokes raise the load to a comfortable, ergonomic height

The AMX 10 scissor lift pallet truck is a premium Jungheinrich product offering durable and reliable quality. As a combination between a pallet truck and lift table, the scissor lift pallet truck is extremely flexible and versatile.

Activities involving frequent bending and heavy lifting can quickly have an effect on employee health. Supported by the automatic quick lift up to 120 kg, loads weighing up to 1000 kg can be raised to an optimum ergonomic height with just a few pumps of the tiller. The truck thus serves as an invaluable aid when working with pallets or pallet cages. It goes without saying that you can also use the AMX 10 as a hand pallet truck to transport your goods.

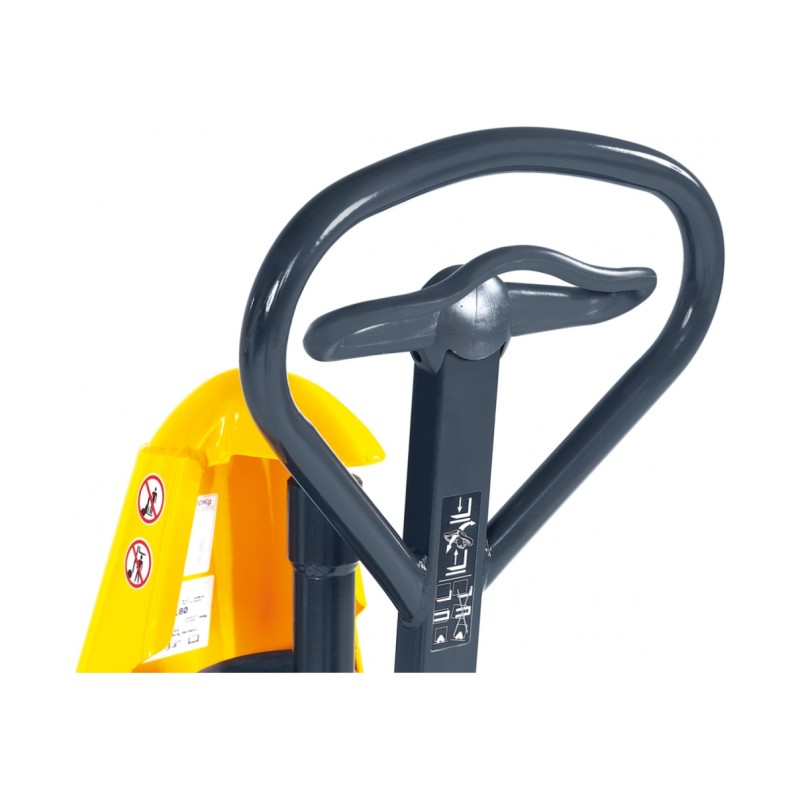

The lift/travel/lower functions are controlled via the ergonomic tiller handle, which can be easily operated with either hand. Thanks to the special lowering valve, loads can be set down with utmost control and precision. You can adjust the working height of the AMX 10 up to a height of 800 mm. As of a lift height of around 400 mm, side-mounted support feet provide additional stability. They secure the pallet truck, which can then no longer move and thus serves as a useful work table.

The fork arms with their closed fork tips and welded construction are torsion-free and highly durable. As a result, the scissor lift pallet truck retains its shape even under the heaviest loads. The single-stage lift cylinder makes the AMX 10 particularly resilient and minimizes the risk of leaks. The overload valve protects against excess loads.

Depending on the ground conditions and specific application, you can choose between a range of wheel and roller materials. Order the versatile Jungheinrich scissor lift pallet truck from our web shop in your chosen configuration. If you don’t find suitable configuration, please get in contact with us.

Type
Hand pallet truck with scissor lift
Route
Short distance
Operator type
Manual
Capacity (Q)
1000 kg
Load centre distance (c)
600 mm
Net weight
158,2 kg (116689-77010055)
158,2 kg (160633-77010033)
158,6 kg (101256-77010004)
Lift range
86 - 800 mm
Lift (h3)
714 mm
Lift type
Manual
Pump strokes to max. lift height
28/56
Pump strokes to lift pallet
2
Rapid lift
Yes
Lift height per pump stroke
25/12 mm
Tiller height
1299 mm
Overall length (l1)
1650 mm
Face of forks length
500 mm
Overall width (b1)
560 mm
Fork length (l)
1150 mm
Fork height (s)
53 mm
Fork width (e)
150 mm
Width across forks (b5)
560 mm
Ground clearance
30 mm
Aisle width
2005 mm
Turning radius (Wa)
1635 mm
Lowering speed with/without load
0,11 / 0,04 m/s
Steering wheel material
Nylon, black (160633-77010033)
Polyurethane (1116689-77010055)
Solid rubber (101256-77010004)
Steering wheel diameter
170 mm
Steering wheel width
50 mm
Fork roller material
Nylon, black (101256-77010004)
Nylon, black (160633-77010033)
Polyurethane (1116689-77010055)
Fork roller diameter
82 mm
Fork roller width
62 mm
Fork roller equipment
Single
Handle fittings
Steel
Pallet truck material
Steel
  • Professional
  • Jungheinrich AMX 10, capacity 1000 kg, manual scissor lift

    Manually raises loads to an ergonomic working height

    • Flexible application - also as a lift table or workbench
    • Automatic quick lift up to 120 kg
    • 800 mm lift height for ergonomic working

    €1,790.00
    Tax excluded
    50433351-77010004
    Status: In stock (JH-SI local warehouse)

    Delivery time: In 2-5 days
